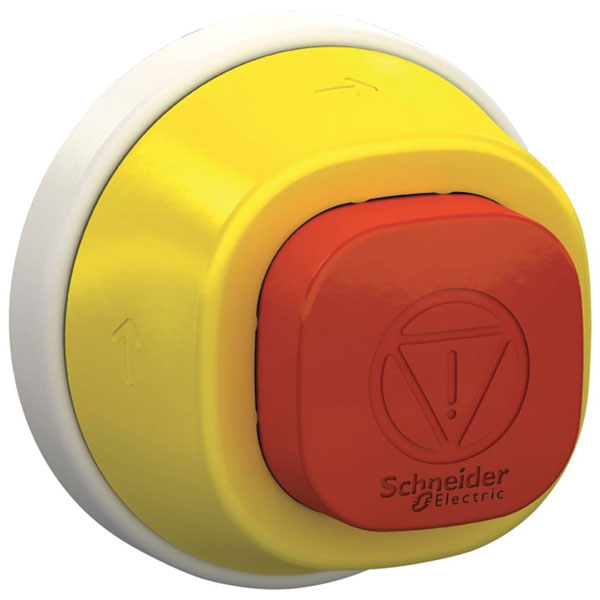

Schneider Electric ZB5AS84W2B Harmony XB5 kill Switch IP66/67/69/69K 24V

Schneider Electric's ZB5AS84W2B is a kill switch/EPO switch designed for emergency power off applications. It boasts robust protection with ratings of IP66, IP67, IP69, and IP69K, making it suitable for harsh environments. Typical applications include use in industrial settings where quick power shutdown is necessary for safety.

Type	Kill switch/EPO switch
Bulb Type	LED (monochrome)
Colour	Red
Colour button	Red/green
Colour front ring	Black
Construction type lens	Round
Contact Material	Silver alloy
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Diameter cap	40mm
Dimensions	(L x W x H) 40 x 60 x 60 mm
Durability	300000 cycles
Front panel thickness	6mm
Functions	latch
Height	60mm
Height opening	N/A
Hole Diameter	22.5mm
Length	40mm
Lighting Type	LED
Material front ring	Plastic
Max. temperature	70°C
Min. temperature	-40°C
Misc Attribute 1	Mushroom head: Square 32mm
Nominal Voltage	24V
Recess Diameter	22.5mm
Spring-return	false
Suitable for emergency stop	true
Suitable for lighting	true
Supply voltage lamp	N/A
Switching function latching	true
Type of button	High
Unlocking mechanism	Turn
Unlocking method	Turn-release
Weight	55g
Width	60mm
Width opening	N/A
With front ring	true
With lighting	true
