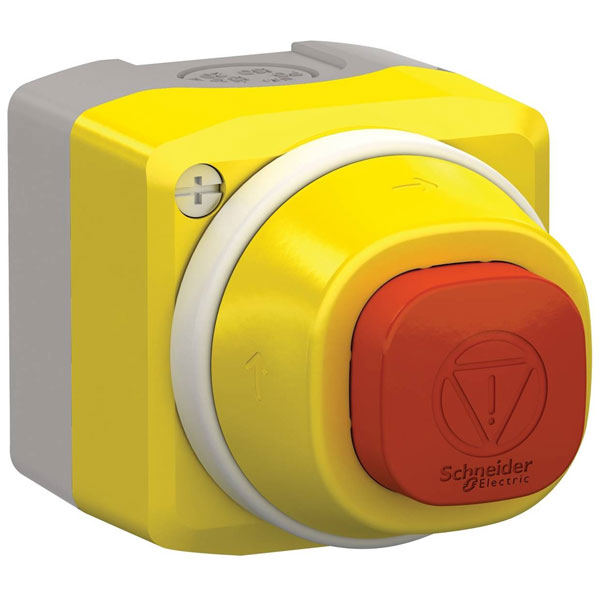

Schneider Electric XALK84W3BE Harmony Kill Switch 24V 6A IP66 IP67 IP69K

Schneider Electric XALK84W3BE is an emergency power off switch with an enclosure, rated at 24 V and 6 A. It is designed for safety applications, offering high protection with IP66, IP67, IP69, and IP69K ratings. This kill switch is typically used to quickly cut off power in emergency situations.

Type	Kill switch/EPO switch
Bulb Type	LED (monochrome)
Colour housing cover	Yellow
Connection	Screw terminal
Contact Material	Silver alloy
Current Rating	6A
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Dimensions	(L x W x H) 53 x 96 x 68 mm
Durability	300000 cycles
Electrical lifespan	1 000 000 cycles
Functions	latch
Height	68mm
Housing Colour	Grey
Housing Material	Plastic
Length	53mm
Lighting Type	LED
Max. temperature	70°C
Min. temperature	-40°C
Misc Attribute 1	Mushroom head: Square 32mm
Nominal Voltage	24V
Number of command positions	1
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of indicator lights	0
Number of key switches	0
Number of mushroom-shaped push-buttons	1
Number of push buttons	0
Number of selector switches	0
Power Consumption	N/A
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	24 - 24V
Suitable for emergency stop	true
Switch/button features	+ enclosure
Width	96mm
