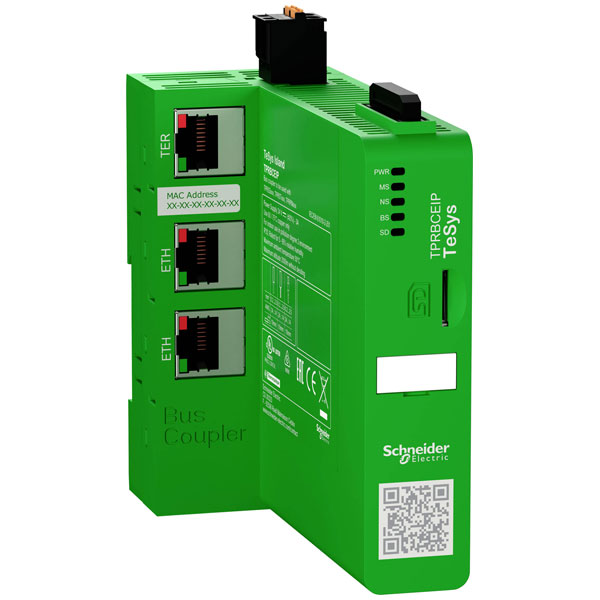

Schneider Electric's TPRBCEIP is a bus connector designed for use with TeSys-island systems, offering reliable 24 V DC connectivity. It serves as an essential component for programmable logic controllers (PLCs), streamlining integration within automation systems. Typically employed in industrial control applications, this connector facilitates efficient communication among devices.
| Appendant operation agent (Ex ia) |
false |
| Appendant operation agent (Ex ib) |
false |
| Certified for UL hazardous location class I |
N/A |
| Certified for UL hazardous location class II |
N/A |
| Certified for UL hazardous location class III |
N/A |
| Certified for UL hazardous location division 1 |
N/A |
| Certified for UL hazardous location division 2 |
N/A |
| Certified for UL hazardous location group A (acetylene) |
N/A |
| Certified for UL hazardous location group B (hydrogen) |
N/A |
| Certified for UL hazardous location group C (ethylene) |
N/A |
| Certified for UL hazardous location group D (propane) |
N/A |
| Certified for UL hazardous location group E (metal dusts) |
N/A |
| Certified for UL hazardous location group F (carbonaceous dusts) |
N/A |
| Certified for UL hazardous location group G (non-conductive dusts) |
N/A |
| Degree of protection (IP) |
IP20 |
| Depth |
114mm |
| Dim |
(W x D) 50 mm x 114 mm |
| Display |
No |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Extensible |
Yes |
| Fieldbus connection over separate bus coupler possible |
false |
| Fitting type (details) |
Top-hat rail |
| Front built-in possible |
false |
| Height |
118mm |
| IO link master |
false |
| IP Rating |
IP20 |
| Max. ambient temperature |
+60°C |
| Max. operating voltage |
28.8V DC |
| Max. permanent current |
3A |
| Min. ambient temperature |
-10°C |
| Min. operating voltage |
20.4V |
| Misc Attribute |
TeSys-island |
| Mobile communication standard 2G (GSM) |
false |
| Mobile communication standard 3G (UMTS) |
false |
| Mobile communication standard GPRS |
false |
| Number of HW-interfaces CAN |
N/A |
| Number of HW-interfaces industrial Ethernet |
N/A |
| Number of HW-interfaces other |
N/A |
| Number of HW-interfaces parallel |
N/A |
| Number of HW-interfaces RS-232 |
N/A |
| Number of HW-interfaces RS-422 |
N/A |
| Number of HW-interfaces RS-485 |
N/A |
| Number of HW-interfaces serial TTY |
N/A |
| Number of HW-interfaces USB |
N/A |
| Number of HW-interfaces wireless |
N/A |
| Number of interfaces PROFINET |
N/A |
| Performance level according to EN ISO 13849-1 |
None |
| Rack-assembly possible |
false |
| Radio standard Bluetooth |
false |
| Radio standard eGPRS |
false |
| Radio standard LTE |
false |
| Radio standard WLAN 802.11 |
false |
| SIL according to IEC 61508 |
None |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| Supply voltage AC 50 Hz |
N/A |
| Supply voltage AC 60 Hz |
N/A |
| Supply voltage DC |
20.4 - 28.8V |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherCAT |
true |
| Supporting protocol for EtherNet/IP |
true |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
true |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
true |
| System accessory |
true |
| Type |
Bus connector |
| Voltage type (supply voltage) |
DC |
| Wall mounting/direct mounting |
false |
| Width |
50mm |
| With potential separation |
true |
