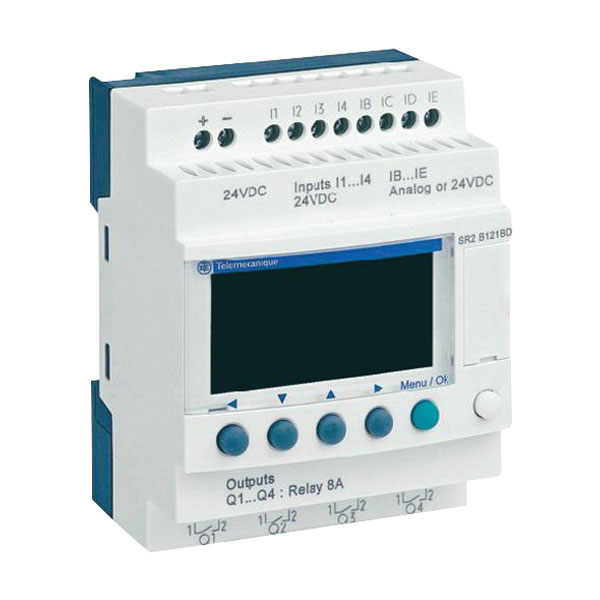

Schneider Electric SR2 B121JD Zelio Compact PLC Module

This Zelio Logic module is a compact smart relay designed for simple control systems. The unit has 12 I/O (8x discrete inputs/4x relay outputs) and a supply voltage of 12V DC. The module comes with a large LCD screen that makes the system easy to use and also has an internal clock.

The module is easy to install and program using either FBD or LADDER and the Zelio Soft 2 programming software is intuitive to use. Zelio Logic smart relays are operationally versatile with test, simulation and monitoring modes along with excellent supervisory functionality.

Suitable for a wide range of simple control system applications carrying out tasks such as small machine control systems, decentralised control systems, lighting management, access control, control and monitoring, heating and air conditioning control, etc.

• Extremely compact
• May be DIN rail mounted
• Display is back-lit LCD 4 lines x 18 char x 1 row icons
• 6x Buttons for contextual navigation
• Zelio Soft 2 intuitive programming software
• Program memory test on each power up
• Serial or USB connecting cables for smart relay/PC connection
• Connection interface (smart relay/PC) for Bluetooth wireless connection
• Protection against inversion of terminals (control instructions not executed)
• Screw terminals
• CSA, C-Tick, GL, GOST, UL certifications

Type	Controller (PLC)
Display Type	4 x 18 character LCD
Supply Voltage	12V DCV
Number of Digital Inputs	8
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Basic device	true
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location class III	false
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Certified for UL hazardous location group A (acetylene)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location group C (ethylene)	false
Certified for UL hazardous location group D (propane)	false
Certified for UL hazardous location group E (metal dusts)	false
Certified for UL hazardous location group F (carbonaceous dusts)	false
Certified for UL hazardous location group G (non-conductive dusts)	false
Degree of protection (IP)	IP20
Depth	59.5mm
Expandable	false
Expansion device	false
Explosion safety category for dust	None
Explosion safety category for gas	None
For Use With	Zelio Logic
Front built-in possible	true
Height	90mm
IO link master	false
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Number of Analogue Inputs	0
Number of Analogue Outputs	0
Number of Digital Outputs	4
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	1
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	1
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Performance level according to EN ISO 13849-1	None
Power Consumption	1.5W
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Redundancy	false
SIL according to IEC 61508	None
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	12 - 12V
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
Switching Current	8A
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	true
Width	71.2mm
With display	true
With optical interface	false
With relay output	true
With time switch clock	true
