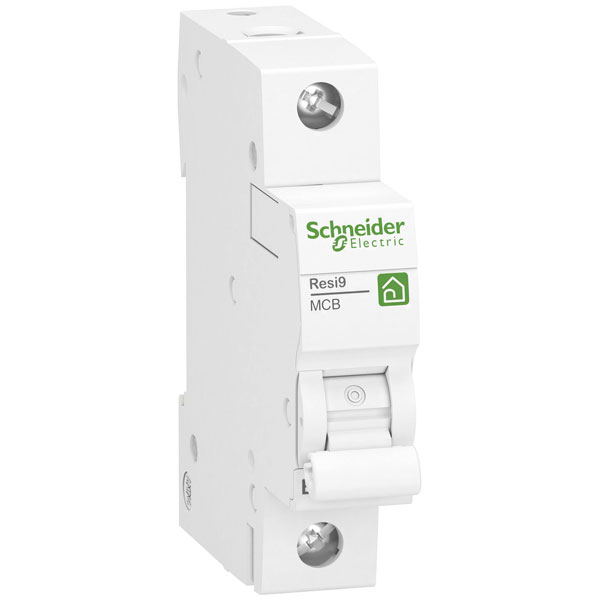

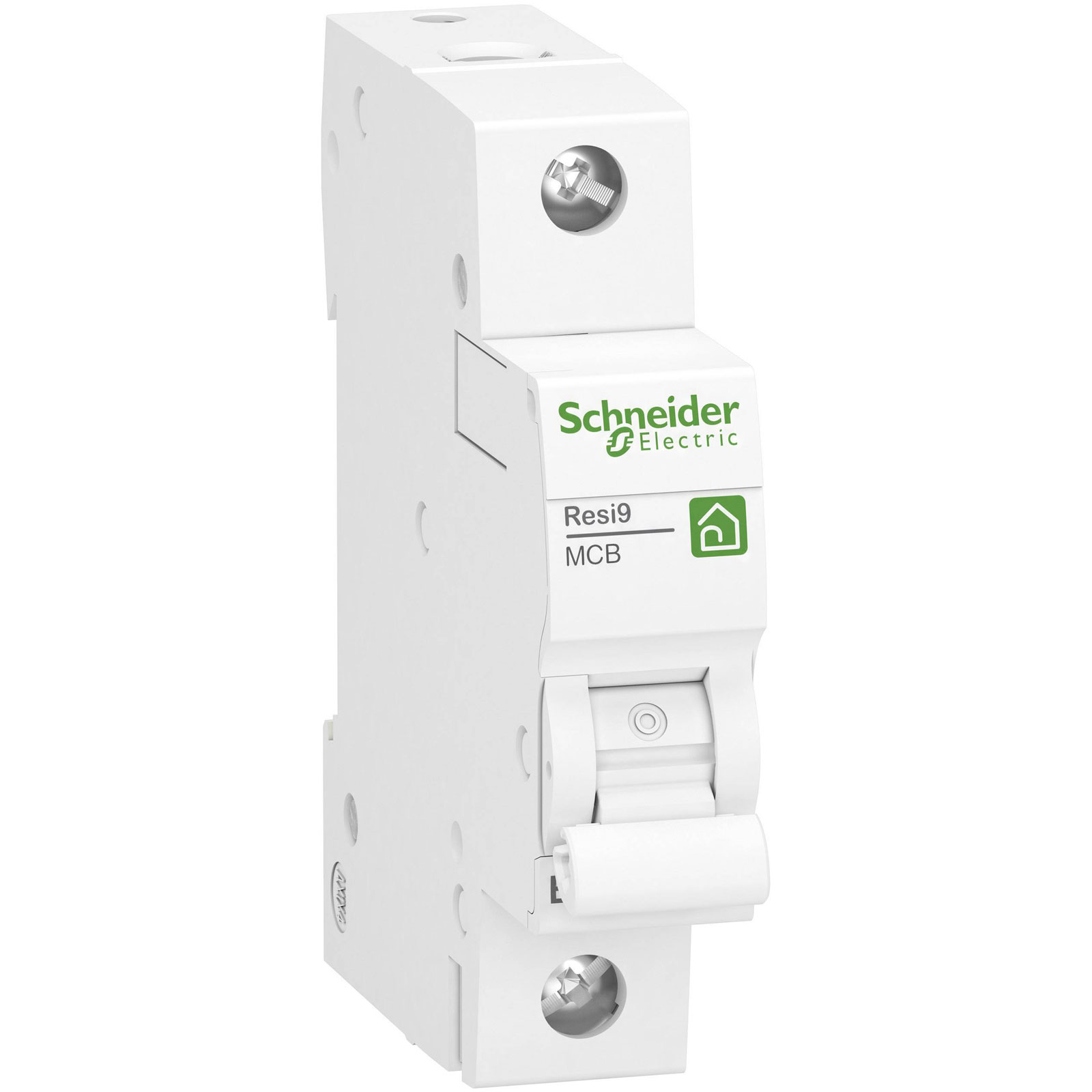

Schneider Electric R9F23120 Circuit Breaker 1-phase 20A 230V

Schneider Electric manufactures the R9F23120, a 1-phase circuit breaker rated for 20 A at 230 V. This reliable device ensures electrical safety by preventing overloads and short circuits in residential and commercial environments. It is typically used in electrical distribution panels to protect lighting and outlet circuits.

Type	Circuit breaker
Current Rating	20a
Voltage Rating - AC	230V AC
Tripping Characteristics	B Curve
Additional equipment possible	false
Ambient temperature during operating	-25 - 60°C
Built-in depth	44mm
Colour	Multicolour
Concurrently switching neutral conductor	false
Connectable conductor cross section multi-wired	1 - 16mm²
Connectable conductor cross section solid-core	1 - 25mm²
Current limiting class	3
Current Ratng	20A
Degree of protection (IP)	IP20
Depth	75mm
Dim	(W x H x D) 18 x 85 x 75 mm
Explosion-proof	false
Flush-mounted installation	false
Frequency	50 - 60Hz
Height	85mm
Model	1-phase
Number of pins	1
Number of Poles	1
Number of poles (total)	1
Number of protected poles	1
Overvoltage category	3
Pollution degree	2
Power loss	2.2W
Rated current	20A
Rated impulse withstand voltage Uimp	4kV
Rated insulation voltage Ui	440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	N/A
Rated voltage	230V
Voltage Rating	230V
Voltage type	AC
Width	18mm
Width in number of modular spacings	1
