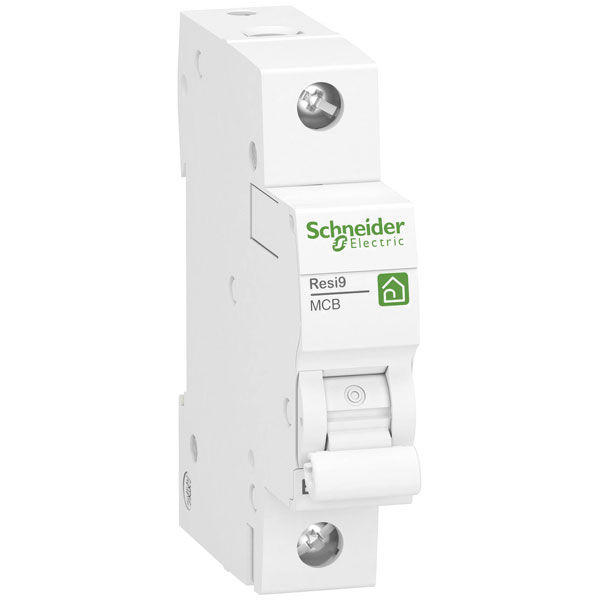

Schneider Electric R9F23106 Circuit Breaker 1-phase 6 A 230 V

Schneider Electric
Order Code:

06-6231

Brand: Schneider Electric MPN: R9F23106 EAN-13: 3606489590062
Qty Unit Price (Ex VAT)
1+ £6.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched in 4 working days

Schneider Electric's R9F23106 is a 1-phase circuit breaker with a 6 A current rating and 230 V voltage capacity. This circuit breaker offers reliable protection for electrical circuits from overloads and short circuits. It is typically used in residential and light commercial applications to ensure electrical safety.
Type Circuit breaker
Additional equipment possible false
Ambient temperature during operating -25 - 60°C
Built-in depth 44mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 6A
Degree of protection (IP) IP20
Depth 75mm
Dim (W x H x D) 18 x 85 x 75 mm
Explosion-proof false
Flush-mounted installation false
Frequency 50 - 60Hz
Height 85mm
Model 1-phase
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 3
Pollution degree 2
Power loss 1.2W
Rated current 6A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 230V
Release characteristic B
Release characteristics B/6kA
Voltage Rating 230V AC
Voltage type AC
Width 18mm
Width in number of modular spacings 1
