Schneider Electric NSYSBM153012 Enclosure Steel 150x300x120mm IP66 IK10

Schneider Electric
Order Code:

06-6129

Brand: Schneider Electric MPN: NSYSBM153012 EAN-13: 3606480520129
Qty Unit Price (Ex VAT)
1+ £49.03
5+ £48.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

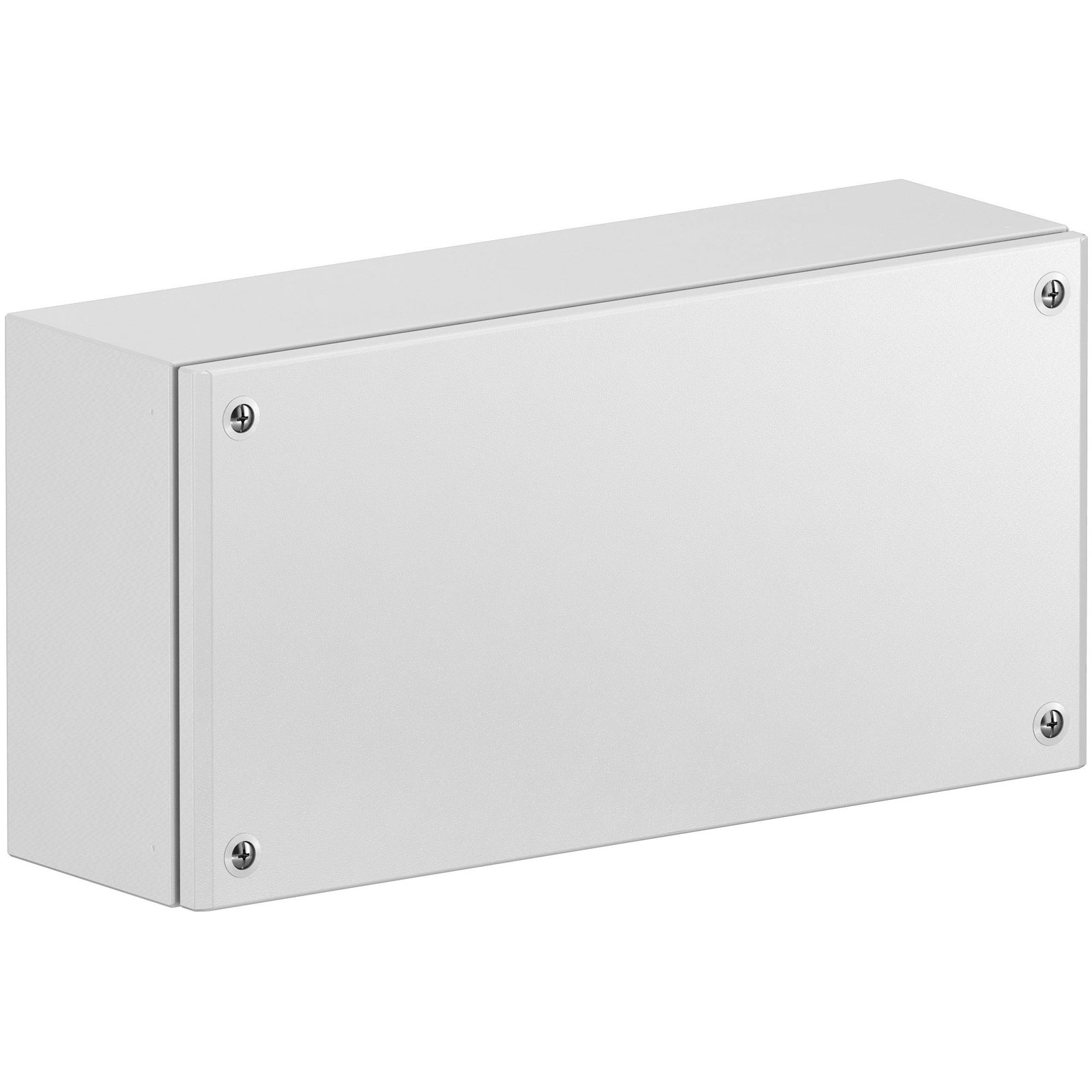

Schneider Electric's NSYSBM153012 casing is made of a steel plate and finished in grey-white. It measures 300 x 150 x 120 mm and is designed for protective housing. This casing is ideal for electrical enclosures and various industrial applications.
Type Casing
Material Steel plate
Protection Rating IP66
Colour Grey-white (RAL 7035)
Dimensions (W x H x D) 300 x 150 x 120 mm
Circuit integrity None
Compliant with BS 6220 false
Connection Type Screwed terminal
Cover attachment Screwed
Degree of protection (IP) IP66
Degree of protection (NEMA) 4X
Depth 120mm
Enclosure Height 150mm
Enclosure Width 300mm
Explosion-tested version false
Extension possible false
For Ex-zone dust None
For Ex-zone gas None
Halogen free true
Impact strength IK10
Length 150mm
Maintenance free in accordance with BS 5733 true
Material plate thickness cabinet 1.2mm
Max. conductor cross section N/A
Mounting Method Surface mounted/recessed mounted
Nominal Voltage N/A
Number of connection clamps 0
Number of inlets 0
RAL-number 7035
Rated current N/A
Rated insulation voltage Ui N/A
Sealable true
Shape Rectangular
Surface protection Other
Type of inlet N/A
Width 300mm
With cover true
With transparent cover false
Working temperature -35 - 80°C
