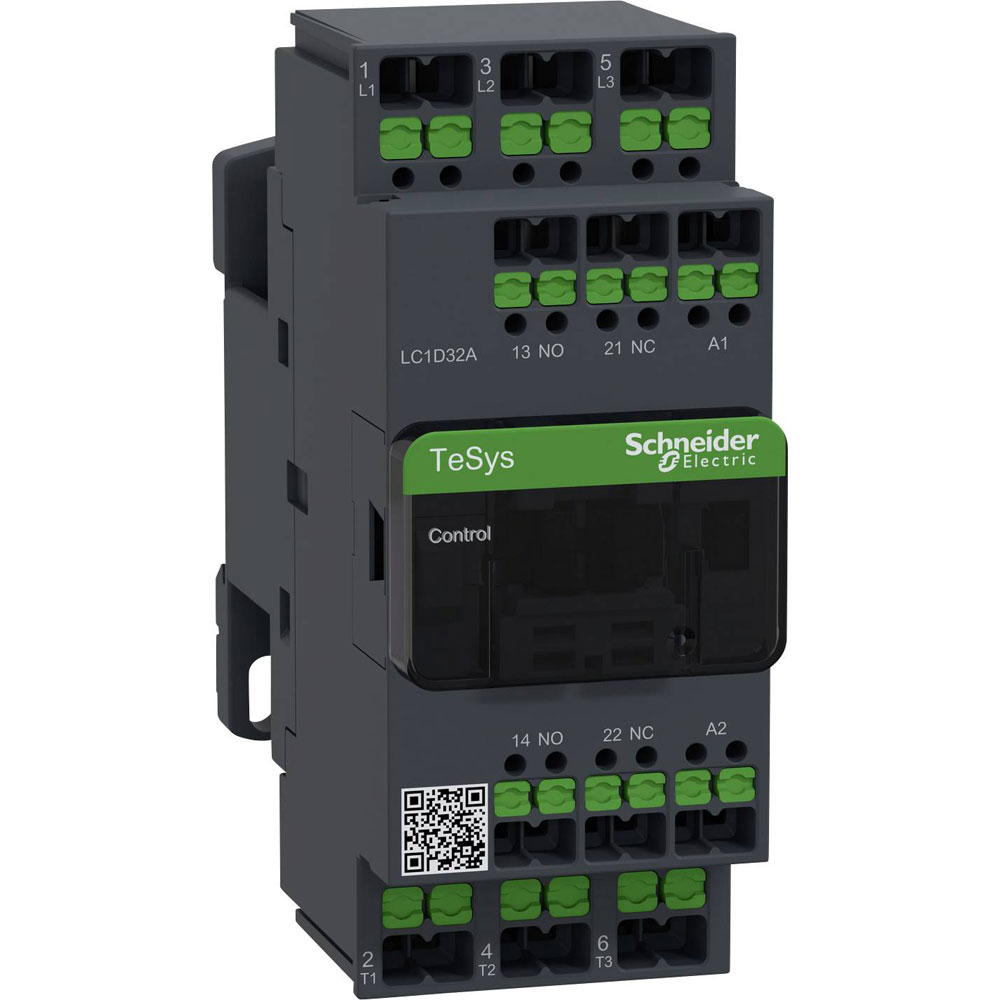

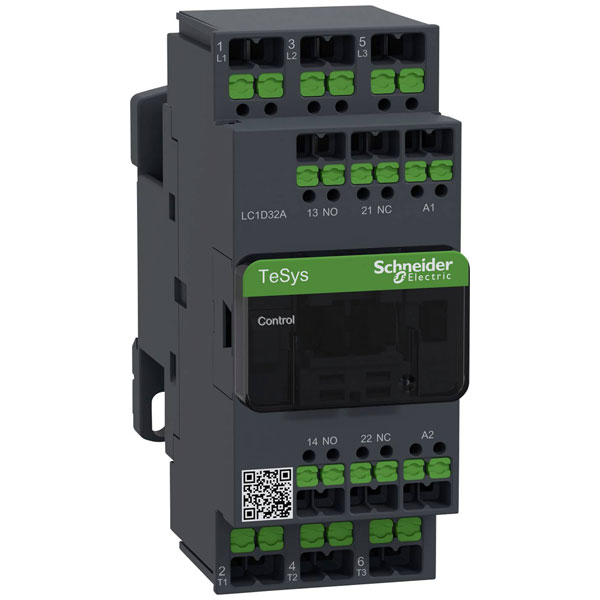

Schneider Electric's LC1D32AP7 is an electrical contactor featuring circular contacts, designed for reliable performance in various industrial applications. This component is integral in controlling electric motors and other power circuits, offering robust switching capabilities suitable for motor control and automation systems. With a current rating that can handle demanding environments, the LC1D32AP7 is often utilised in machinery, heating, ventilation, and air conditioning (HVAC) systems. Its construction ensures durability and efficient operation, making it a preferred choice for engineers looking to implement effective control solutions.
| Type |
LC1D32AP7 |
| Connection |
Snap-in |
| Content |
1 |
| Depth |
92mm |
| Dimensions |
(W x H x D) 45 x 110 x 92 mm |
| Height |
110mm |
| IP Rating |
IP20 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
0 |
| Number of normally open contacts as main contact |
3 |
| Operating voltage AC 50 Hz |
440-440V |
| Operating voltage AC 60 Hz |
440-440V |
| Product Type |
Electrical contactor |
| Rated control supply voltage AC 50 Hz |
230-230V |
| Rated control supply voltage AC 60 Hz |
230-230V |
| Rated control supply voltage DC |
N/A |
| Rated operation current Ie at AC-1, 400 V |
50A |
| Rated operation current Ie at AC-3, 400 V |
32A |
| Rated operation current Ie at AC-4, 400 V |
N/A |
| Rated operation power at AC-3, 400 V |
15kW |
| Rated operation power at AC-4, 400 V |
N/A |
| Rated operation power NEMA |
N/A |
| Suitable for distribution board |
FALSE |
| Type of electrical connection of main circuit |
Other |
| Voltage type for actuating |
AC |
| Width |
45mm |
