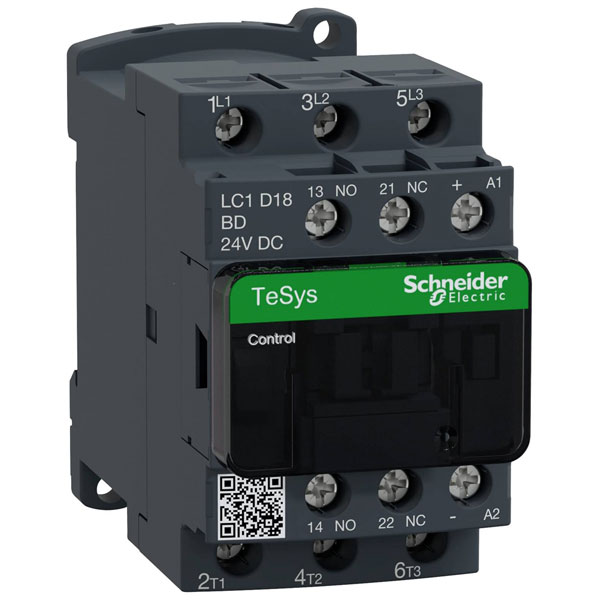

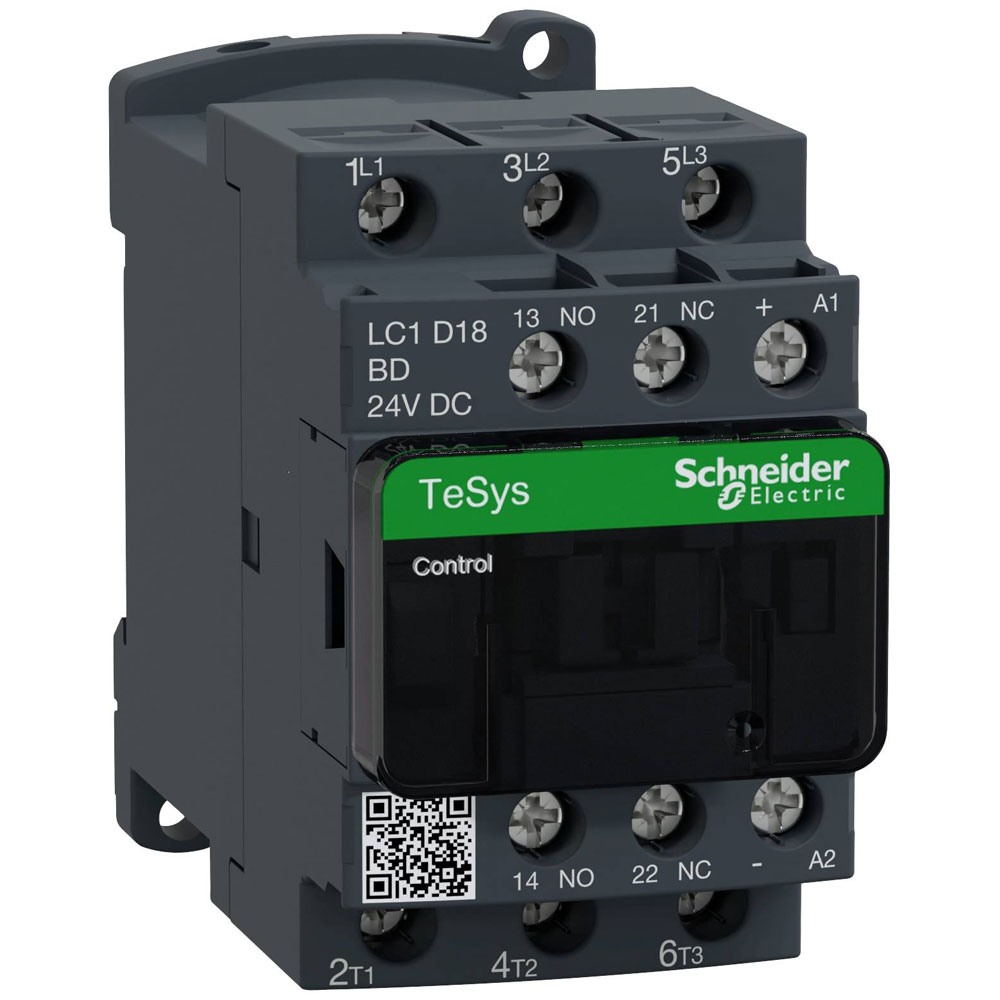

Schneider Electric LC1D18BD Contactor 1 Maker 1 Breaker 1pc

Schneider Electric LC1D18BD is an electrical contactor designed for efficient operation in control circuits. It features a single maker and breaker, ensuring reliable performance for controlling large electrical loads. This contactor is typically used in industrial automation systems and can help manage motors and other heavy-duty electrical applications.

Type	Contactor
Coil Voltage	24V DC
Connection	Screw terminal
Depth	95mm
Dimensions	(W x H x D) 45 x 77 x 95 mm
Height	77mm
IP Rating	IP20
Maximum Temperature	+60°C
Min. temperature	-5°C
Mounting Style	DIN rail
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24 - 24V
Rated operation current Ie at AC-1, 400 V	32A
Rated operation current Ie at AC-3, 400 V	18A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	7.5kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Width	45mm
