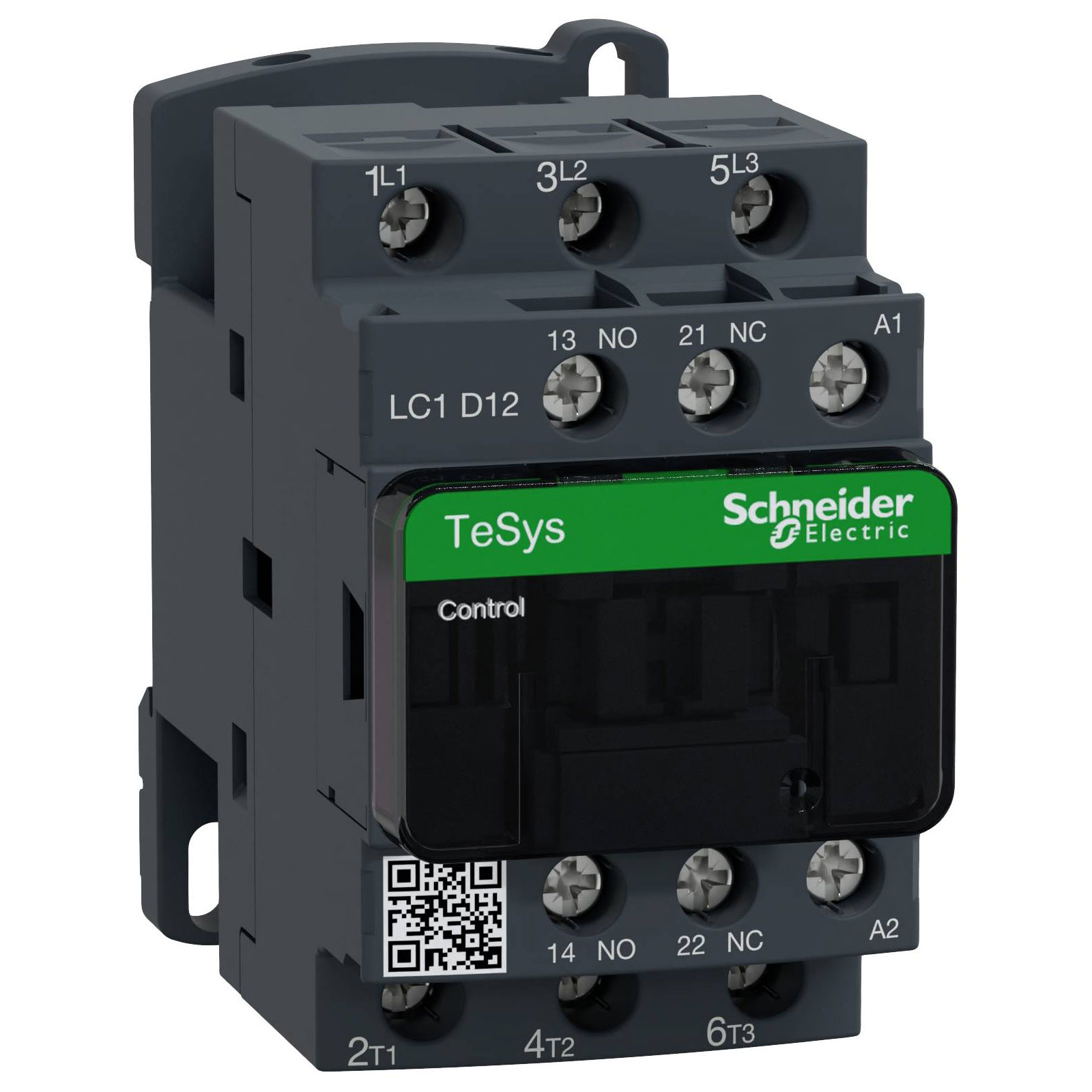

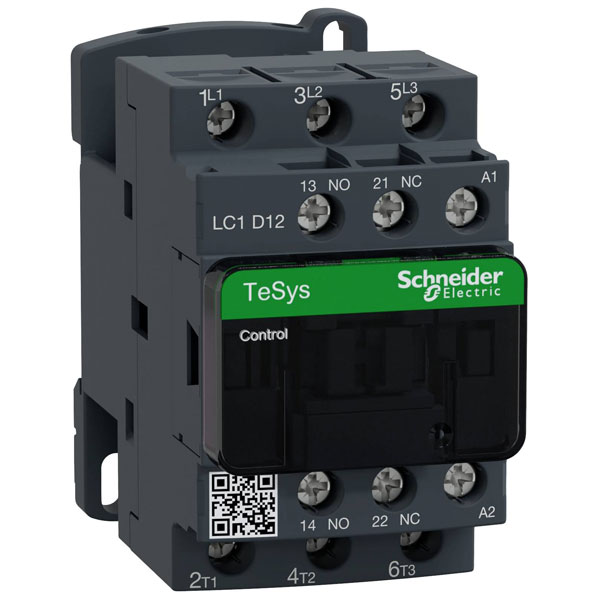

Schneider Electric LC1D12P7 Contactor 1 maker 1 breaker

Schneider Electric's LC1D12P7 contactor is designed for industrial applications, featuring one maker and one breaker. This electrical contactor is ideal for controlling motors and managing electrical circuits. It is robust and reliable, suitable for a wide range of electrical installations.

Type	Contactor
Coil Voltage	230V AC
Connection	Screw terminal
Contact Current Rating	12A
Depth	86mm
Dimensions	(W x H x D) 45 x 77 x 86 mm
Height	77mm
IP Rating	IP20
Maximum Temperature	+50°C
Min. temperature	-25°C
Mounting Style	DIN rail
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	440 - 440V
Operating voltage AC 60 Hz	440 - 440V
Rated control supply voltage AC 50 Hz	230 - 230V
Rated control supply voltage AC 60 Hz	230 - 230V
Rated control supply voltage DC	N/A
Rated operation current Ie at AC-1, 400 V	25A
Rated operation current Ie at AC-3, 400 V	12A
Rated operation current Ie at AC-4, 400 V	N/A
Rated operation power at AC-3, 400 V	5.5kW
Rated operation power at AC-4, 400 V	N/A
Rated operation power NEMA	N/A
Suitable for distribution board	false
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	45mm
