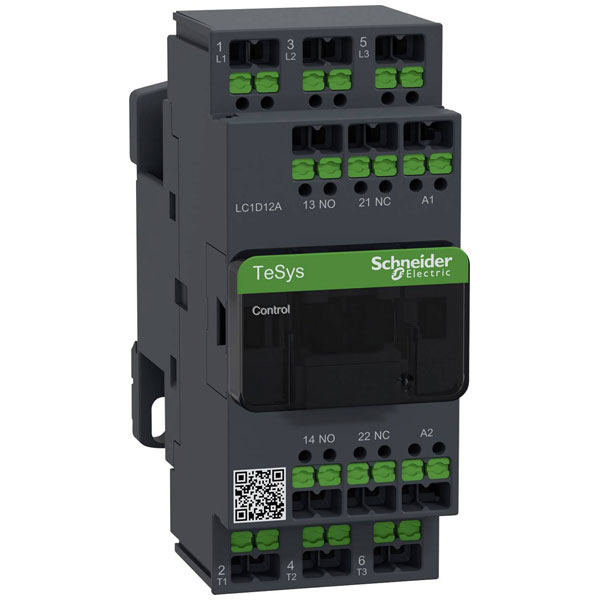

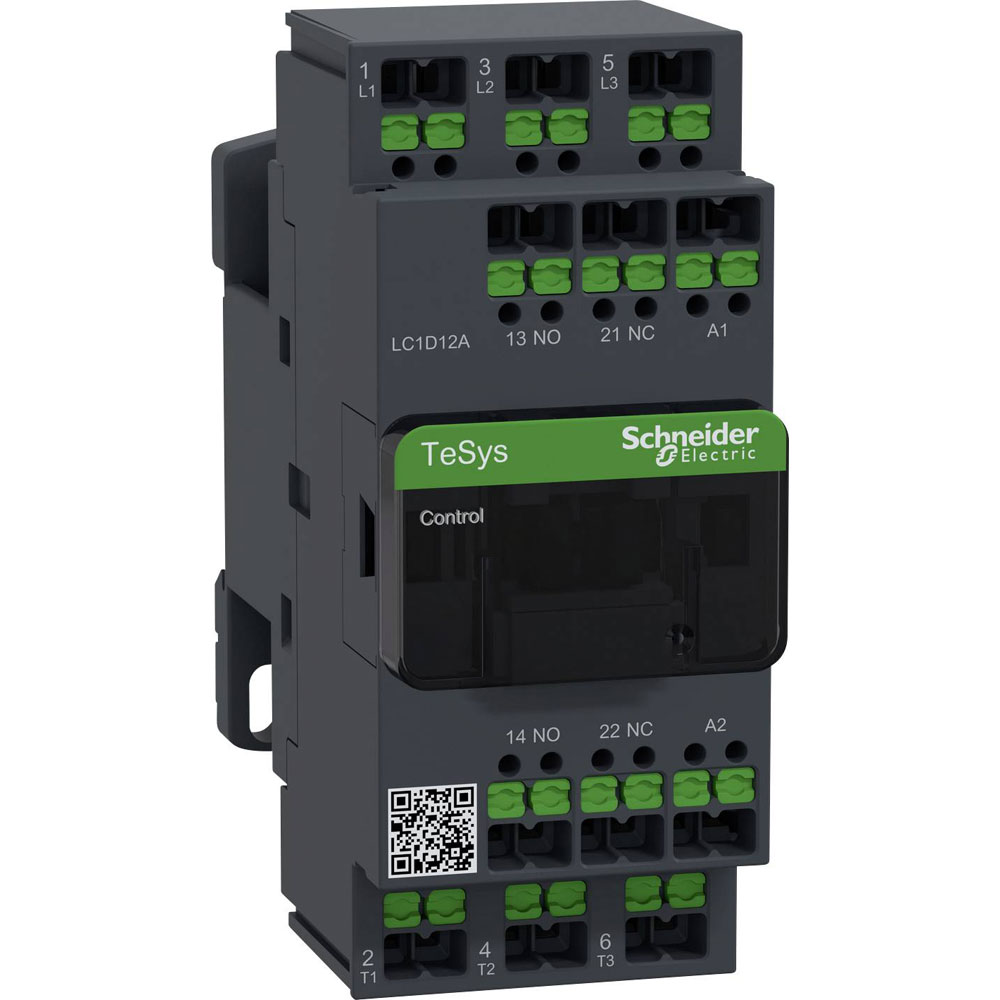

Schneider Electric LC1D12AP7 Electrical contactor 1 pcs 3-pole 12A 240V AC

Schneider Electric LC1D12AP7 is an electrical contactor designed to provide efficient and reliable switching capabilities in industrial automation systems. The contactor features circular contacts that enhance the electrical connection between circuits, ensuring robust performance under demanding conditions. It is suitable for controlling electric motors, heating systems, and other electrical loads up to 12 amperes, with a coil voltage of 230 volts AC 50/60 Hz. The LC1D12AP7 is commonly used in a variety of engineering applications, including manufacturing processes and building automation, where precise control and durability are paramount.

Type	LC1D12AP7
Connection	Snap-in
Content	1
Depth	86mm
Dimensions	(W x H x D) 45 x 107 x 86 mm
Height	107mm
IP Rating	IP20
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	440-440V
Operating voltage AC 60 Hz	440-440V
Product Type	Electrical contactor
Rated control supply voltage AC 50 Hz	230-230V
Rated control supply voltage AC 60 Hz	230-230V
Rated operation current Ie at AC-1, 400 V	25A
Rated operation current Ie at AC-3, 400 V	12A
Rated operation power at AC-3, 400 V	5.5kW
Suitable for distribution board	FALSE
Type of electrical connection of main circuit	Other
Voltage type for actuating	AC
Width	45mm
