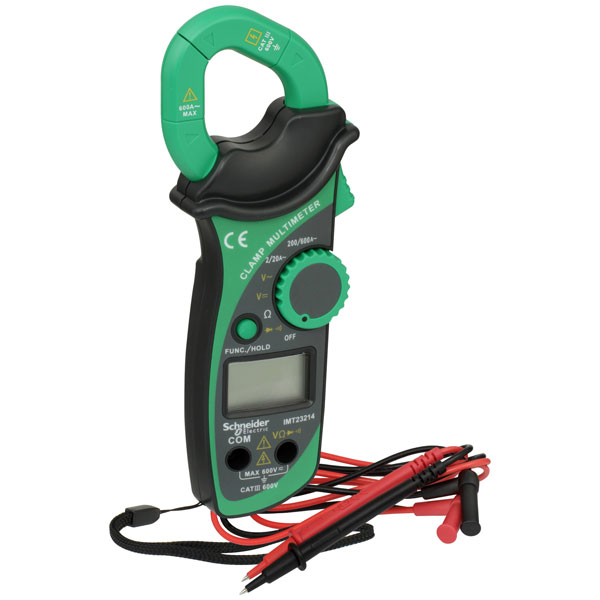

Schneider Electric IMT23214 digital clamp meter compact auto-range 600V

Schneider Electric's IMT23214 is a versatile clamp meter designed as a multi-purpose tester capable of measuring voltage, current, and frequency. Its digital readout provides precise and convenient readings, making it a reliable tool for professionals in electrical diagnostics and troubleshooting. Common applications include evaluating electrical systems, ensuring correct voltage levels, and testing circuit functionality.

Type	Clamp meter
Maximum DC Current Measurement	600V
Maximum AC Current Measurement	600A
A AC reading range (min.)	2A
Automatic circuit breaker	false
Bluetooth interface	false
Cable length measurement	false
Cable symmetry testing for two wire connections a-b-E	false
Calibrated to	Manufacturer's standards (no certificate)
Calibration according to ISO/IEC 17025	false
Calibration certificate according to DAkkS	false
Capacitance Measurement	false
Clip factors for current sensor	N/A
Clip factors for current transformer	N/A
COFRAC certified	false
Continuity test	true
Current reading	AC
Current supply	N/A
Data hold	true
Degree of protection (IP)	N/A
Dimensions	(L x W x H) 36 x 76 x 190 mm
Duty cycle measurements	false
Explosion-tested version	false
Frequency measurement	false
Harmonics analysis/power quality	false
Height	190mm
High voltage test for motor windings	false
Indication	Digital
Inductance measurement	false
Interface	false
IR interface	false
Isolation resistance measuring range	N/A
Length	36mm
Lowest resolution temperature	N/A
Lowest resolution, AC current	Other
Lowest resolution, AC voltage	Other
Lowest resolution, AC/DC current	N/A
Lowest resolution, AC/DC voltage	N/A
Lowest resolution, capacitance	N/A
Lowest resolution, DC current	N/A
Lowest resolution, DC voltage	Other
Lowest resolution, frequency	N/A
Lowest resolution, resistance	Other
Max. capacitance measuring range	N/A
Max. current measuring range with clip factor	N/A
Max. current measuring range, AC	600A
Max. current measuring range, AC/DC	N/A
Max. current measuring range, DC	N/A
Max. frequency measuring range	N/A
Max. resistance measuring range	20MOhm
Max. temperature measuring range	N/A
Max. value storage	false
Max. voltage measuring circuit category	N/A
Max. voltage measuring range AC	600V
Max. voltage measuring range AC/DC	N/A
Max. voltage measuring range DC	600V
Measured value memory	false
Measurement principle	N/A
Measuring circuit category	CAT III
Measuring range selection	Automatic
Milliohm measurement with 4 wire technique (Kelvin connection)	N/A
Min. value storage	false
Multiple display	N/A
Nominal test voltage 10 V	false
Nominal test voltage 100 V	false
Nominal test voltage 1000 V	false
Nominal test voltage 250 V	false
Nominal test voltage 50 V	false
Nominal test voltage 500 V	false
Peak value memory	false
Power and energy measurement	false
Relative measurement accuracy	N/A
Relative value measurement	false
Resistance test/diode test	false
Rotational speed measuring	false
Scaling bar graph linear	N/A
Scaling bar graph logarithmic	N/A
Temperature measurement	N/A
Temperature measurement RTD	false
Temperature measurement TC	false
True RMS measurement	false
V AC reading range (min.)	2V
Voltage metering	AC/DC
Voltage reading range DC (min.)	200mV
Weight	160g
Width	76mm
With conductivity measurement	false
With decibel measurement (dB)	false
With display backlight	false
