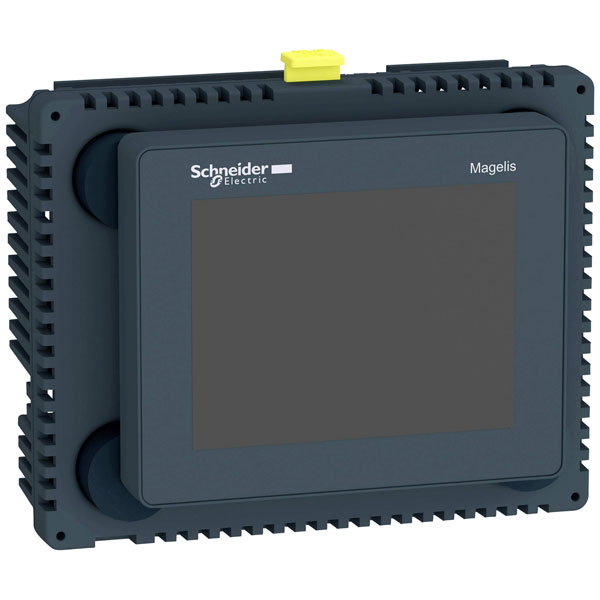

Schneider Electric HMISCU6B5 PLC add-on module for versatile control

Schneider Electric's HMISCU6B5 is a PLC add-on module designed for easy integration into automation systems. It features robust programmability, making it suitable for industrial and commercial applications requiring flexible control. Typically, it is used in automating machinery processes to enhance operational efficiency and reliability.

Type	PLC add-on module
Additional software components, loadable	true
Built-in depth	74.95mm
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location class III	false
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Certified for UL hazardous location group A (acetylene)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location group C (ethylene)	false
Certified for UL hazardous location group D (propane)	false
Certified for UL hazardous location group E (metal dusts)	false
Certified for UL hazardous location group F (carbonaceous dusts)	false
Certified for UL hazardous location group G (non-conductive dusts)	false
Colour display	true
Degree of protection (IP), front side	IP65/IP67
Degree of protection (NEMA), front side	4X
Height of the front	102mm
IO link master	true
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Number of buttons with LED	0
Number of colours of the display	65536
Number of function buttons, programmable	0
Number of grey-scales/blue-scales of display	0
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	1
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	2
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Number of online languages	4
Number of password levels	0
Number of pixels, horizontal	320
Number of pixels, vertical	240
Number of system buttons	0
Operating Temperature	-20 - 60°C
Power Consumption	15W
Process default value (input) possible	true
Process value representation (output) possible	true
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Screen diagonal	3.5in
Screen size diagonal (inches)	1.0in
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	24 - 24V
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	true
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	true
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	true
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	true
Touch technology	Resistive touch
Type of display	LCD
Usable project memory/user memory	128kByte
Voltage type (supply voltage)	AC/DC
Wall mounting/direct mounting	true
Width of the front	128mm
With alpha numeric keyboard	false
With message indication	true
With message system (incl. buffer and confirmation)	false
With numeric keyboard	false
With printer output	false
With recipes	false
With SW interfaces	true
