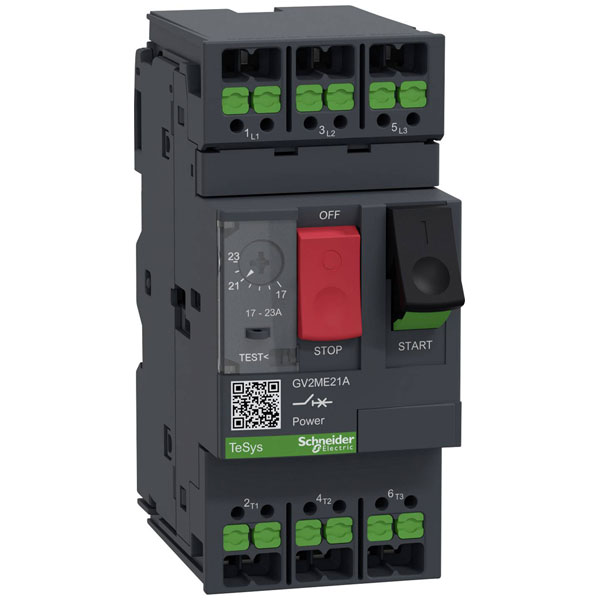

Schneider Electric GV2ME21A Overload relay Circuit Breakers

Schneider Electric's GV2ME21A, an overload relay circuit breaker, is designed to protect electrical motors from overload conditions by interrupting current flow when necessary. This compact and robust device integrates seamlessly with electrical contactors, enhancing the safety and reliability of motor control systems. Engineered for versatility, the GV2ME21A is suitable for use in industrial applications where maintaining motor performance and safeguarding against electrical faults are critical. Typically utilised in machinery, pumps, and conveyors, this circuit breaker ensures efficient operation within electrical panels, supporting both maintenance efficiency and operational uptime. With its precise engineering, it provides dependable motor overload protection in diverse and challenging environments.

Type	GV2ME21A
Adjustment range undelayed short-circuit release	327-327A
Colour	Multicolour
Connection	Snap-in
Content	1
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Number of Poles	3
Overload release current setting	17-23A
Phase failure sensitive	TRUE
Power loss	2.5W
Product Type	Overload relay
Rated operating voltage	230-690V
Rated operation power at AC-3, 230 V	5.5kW
Rated operation power at AC-3, 400 V	9kW
Rated permanent current Iu	23A
Rated short-circuit breaking capacity Icu at 400 V, AC	15kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
