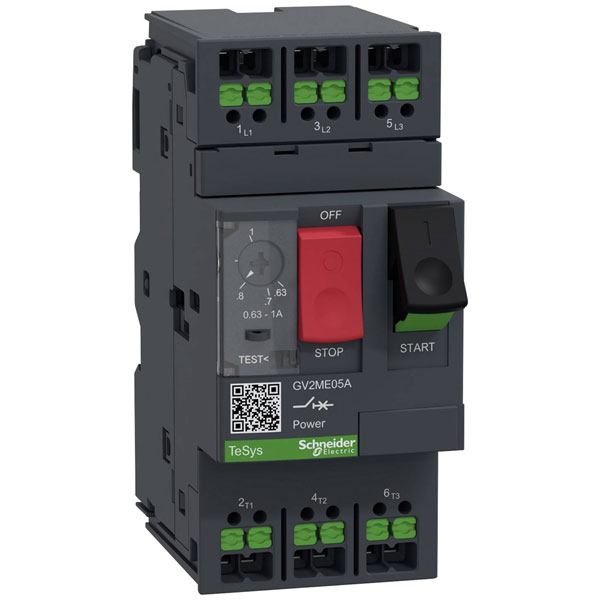

Schneider Electric GV2ME05A GV2ME Overload relay 0.63-1A Circuit Breakers

Schneider Electric GV2ME05A is an overload relay designed for precise and reliable protection of electrical equipment against overcurrents. With an adjustable amperage range of 0.63 to 1 A, this device is ideal for safeguarding motors by integrating seamlessly into contactor assemblies to prevent overheating and potential damage. Typically employed in industrial and commercial environments, the GV2ME05A is suitable for applications requiring precise current regulation, such as conveyor systems, pumps, and various automated machinery. As part of Schneider Electric’s comprehensive line of circuit breakers, this overload relay ensures enhanced durability and operational safety, contributing to improved lifecycle management of electric motors and associated systems.

Type	GV2ME05A
Adjustment range (amperage)	0.63 - 1 A
Adjustment range undelayed short-circuit release	13-13A
Amperage adjustment range (max.)	1A
Amperage adjustment range (min.)	0.63mA
Colour	Multicolour
Connection	Snap-in
Content	1
Depth	78.5mm
Device construction	Complete device in housing
Dimensions	(W x H x D) 45 x 101 x 78.5 mm
Height	101mm
IP Protection	IP20
IP Rating	IP20
No. of pins	3-pin
Number of Poles	3
Overload release current setting	0.63-1A
Phase failure sensitive	TRUE
Power loss	2.5W
Product Type	Overload relay
Rated operating voltage	230-690V
Rated operation power at AC-3, 230 V	0.12kW
Rated operation power at AC-3, 400 V	0.25kW
Rated permanent current Iu	1A
Rated short-circuit breaking capacity Icu at 400 V, AC	100kA
Switch off technique	Thermomagnetic
Type of control element	Push button
Type of electrical connection of main circuit	Other
Width	45mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
With thermal overload protection	TRUE
