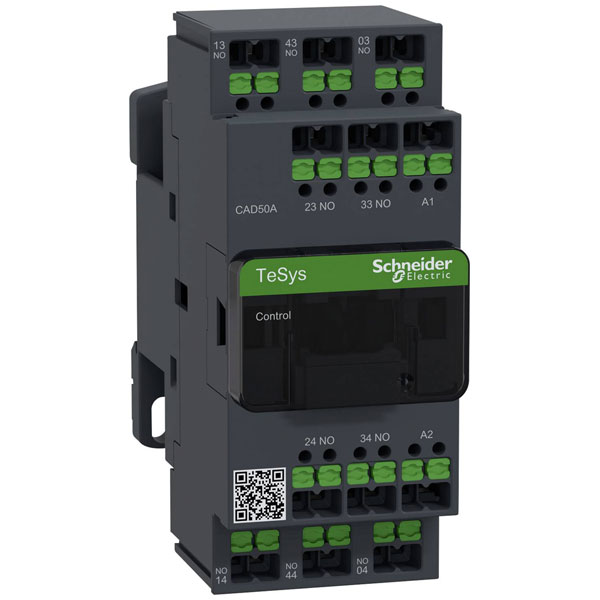

Schneider Electric CAD50AP7 Auxiliary contactor 1 pc(s) for contactors use

Schneider Electric's CAD50AP7 Auxiliary Contactor is specifically designed for integrating into a wide range of electrical control applications, where circular contacts are required. This component is built to provide reliable performance and is known for its robustness and versatility. The CAD50AP7 features a straightforward design that enhances its utility in industrial automation systems, allowing for seamless integration with other contactors and components. It is commonly utilised in control circuits for motor starters, control panels, and automated production lines, ensuring efficient and safe operation within electrical systems. With Schneider Electric's commitment to quality, the CAD50AP7 Auxiliary Contactor offers engineers a dependable solution for implementing auxiliary functions in complex electrical setups.

Type	CAD50AP7
Auxiliary contact type	5 makers
Connection	Snap-in
Connection type auxiliary circuit	Other
Content	1
Control voltage (max.)	230V AC
Control voltage range	230 V AC (max)
Depth	93mm
Dimensions	(W x H x D) 45 x 107 x 93 mm
Height	107mm
Interface	FALSE
IP Rating	IP20
Mounting Method	Other
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally closed contact, delayed switching	0
Number of auxiliary contacts as normally open contact	5
Number of auxiliary contacts as normally open contact, leading	0
Operating voltage AC 50 Hz	690-690V
Operating voltage AC 60 Hz	690-690V
Product Type	Auxiliary contactor
Rated control supply voltage AC 50 Hz	230-230V
Rated control supply voltage AC 60 Hz	230-230V
Rated operation current	10A
Rated operation current Ie, 400 V	10A
Rated switch current	0.005A
Suitable for manual operation	FALSE
Voltage type (operating voltage)	AC
Voltage type for actuating	AC
Width	45mm
With LED indication	FALSE
