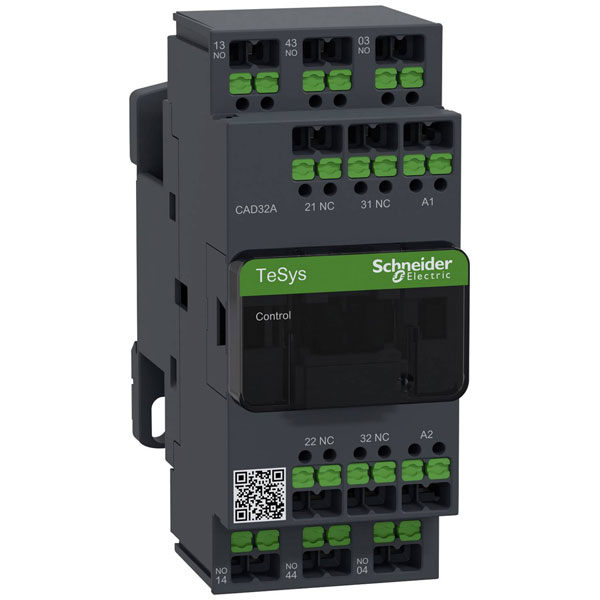

Schneider Electric CAD32AP7 Auxiliary contactor 3 makers 2 breakers 1 pc

Schneider Electric CAD32AP7 is a robust auxiliary contactor designed with circular contacts, offering three normally open (NO) makers and two normally closed (NC) breakers within a single unit. This versatile component is engineered for efficient use within electrical control circuits, enhancing system reliability by providing effective load evaluation and signal separation. It is commonly implemented in control panels, motor control centres, and other industrial automation applications where precise auxiliary switching functions are required. The CAD32AP7, with its dependable electromechanical design, offers engineers a reliable solution for managing electrical operations in a variety of demanding environments.

Type	CAD32AP7
Connection	Snap-in
Connection type auxiliary circuit	Other
Content	1
Control voltage (max.)	230V AC
Control voltage range	230 V AC (max)
Depth	93mm
Dimensions	(W x H x D) 45 x 107 x 93 mm
Height	107mm
Interface	FALSE
IP Rating	IP20
Mounting Method	Other
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally closed contact, delayed switching	0
Number of auxiliary contacts as normally open contact	3
Number of auxiliary contacts as normally open contact, leading	0
Operating voltage AC 50 Hz	690-690V
Operating voltage AC 60 Hz	690-690V
Product Type	Auxiliary contactor
Rated control supply voltage AC 50 Hz	230-230V
Rated control supply voltage AC 60 Hz	230-230V
Rated operation current	10A
Rated operation current Ie, 400 V	10A
Rated switch current	0.005A
Suitable for manual operation	FALSE
Voltage type (operating voltage)	AC
Voltage type for actuating	AC
Width	45mm
With LED indication	FALSE
