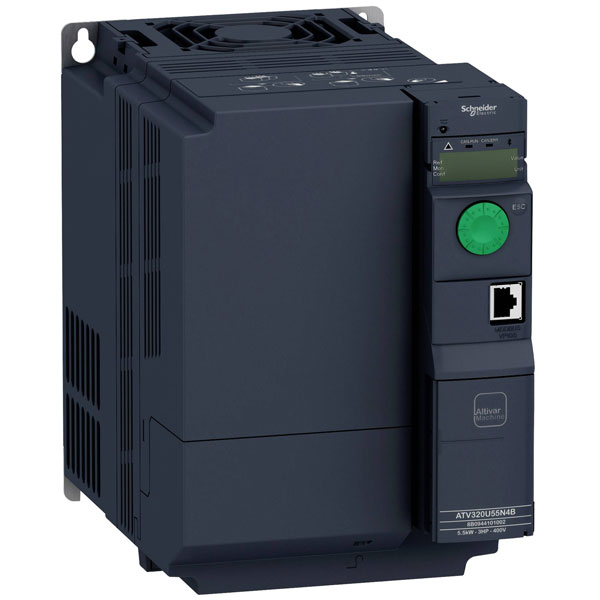

Schneider Electric's ATV320U55N4B Frequency Inverter is a robust device offering 5.5 kW of power for 3-phase motors. Its compact and efficient design makes it ideal for industrial automation and machinery applications. This frequency converter enhances motor control, improving energy efficiency and process reliability in various settings.
| Type |
Inverter |
| 4-quadrant operation possible |
true |
| Application in domestic- and commercial area permitted |
false |
| Application in industrial area permitted |
true |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
1 |
| Depth |
232mm |
| Dimensions |
(W x H x D) 150 x 232 x 232 mm |
| Frequency Range |
0.1 Hz - 599 Hz |
| Height |
232mm |
| Integrated breaking resistance |
false |
| IP Rating |
IP20 |
| Mains Frequency |
50/60 Hz |
| Mains voltage |
380 - 500V |
| Max. frequency |
599Hz |
| Max. output at linear load at rated output voltage |
5.5kW |
| Max. output at quadratic load at rated output voltage |
5.5kW |
| Max. output frequency |
599Hz |
| Max. output voltage |
500V |
| Min. frequency |
0.1Hz |
| Network |
3-phase |
| Nominal Current |
20.4A |
| Nominal output current I2N |
14.3A |
| Number of Analogue Inputs |
3 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
6 |
| Number of Digital Outputs |
1 |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
5.5kW |
| Power Consumption |
N/A |
| Relative symmetric net frequency tolerance |
5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for BACnet |
false |
| Supporting protocol for CAN |
true |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
true |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherNet/IP |
true |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
true |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
true |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
true |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Type of converter |
U converter |
| Width |
150mm |
| With control element |
true |
| With optical interface |
false |
| With PC connection |
true |
