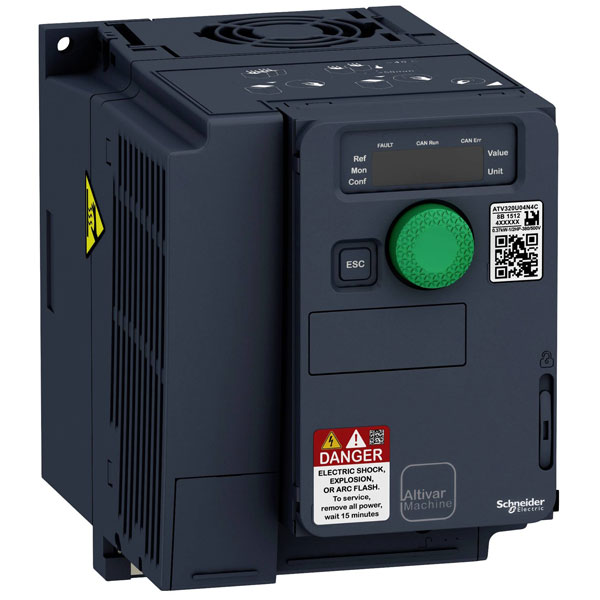

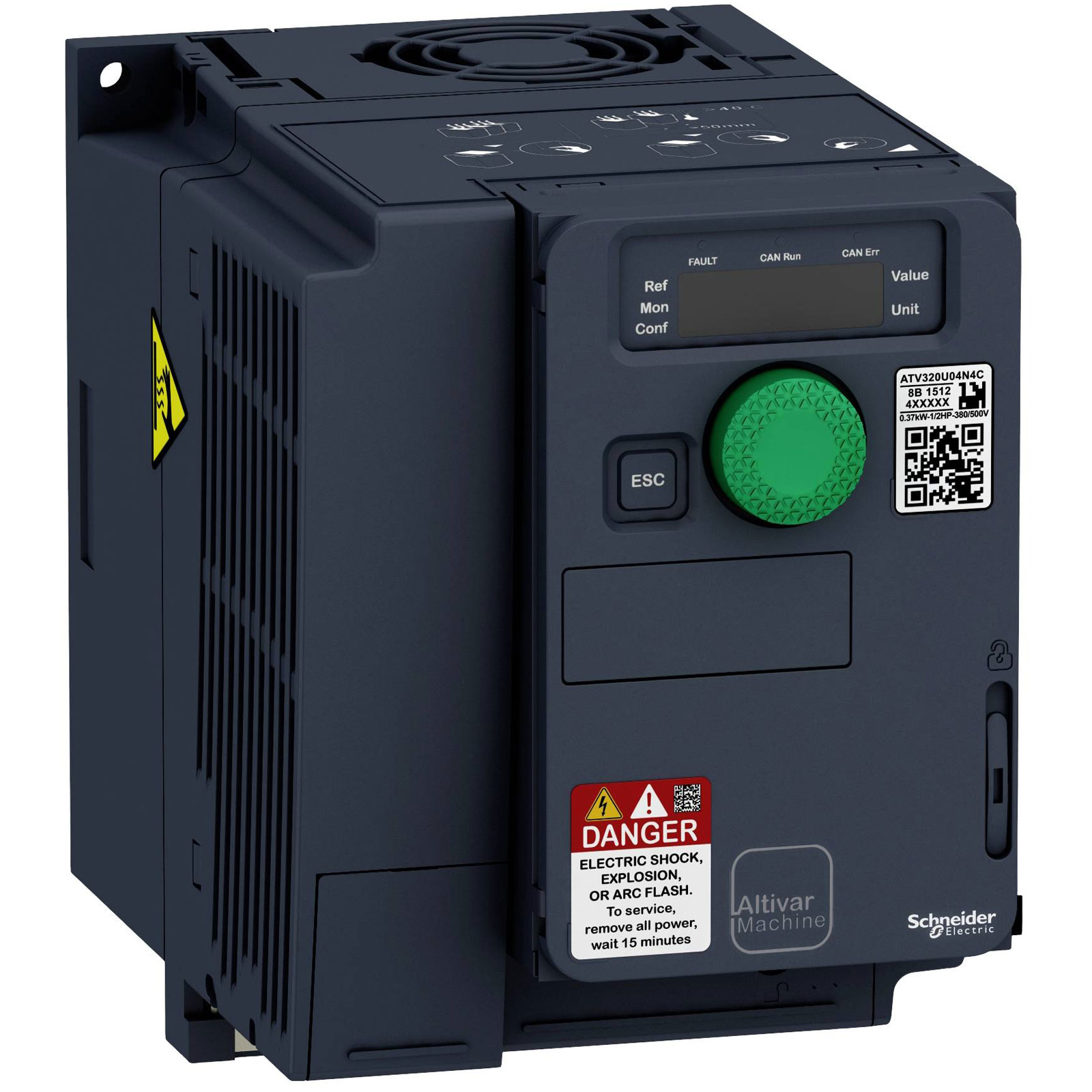

The Schneider Electric ATV320U15N4C is a 1.5 kW frequency inverter designed for 3-phase motor control. It offers reliable performance and efficient energy management for industrial automation systems. Typical applications include conveyor systems, fans, and pumps.
| Type |
Inverter |
| 4-quadrant operation possible |
true |
| Application in domestic- and commercial area permitted |
false |
| Application in industrial area permitted |
true |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
1 |
| Depth |
138mm |
| Dimensions |
(W x H x D) 72 x 143 x 138 mm |
| Frequency Range |
0.1 Hz - 599 Hz |
| Height |
143mm |
| Integrated breaking resistance |
false |
| IP Rating |
IP20 |
| Mains Frequency |
50/60 Hz |
| Mains voltage |
380 - 500V |
| Max. frequency |
599Hz |
| Max. output at linear load at rated output voltage |
1.5kW |
| Max. output at quadratic load at rated output voltage |
1.5kW |
| Max. output frequency |
599Hz |
| Max. output voltage |
500V |
| Min. frequency |
0.1Hz |
| Network |
3-phase |
| Nominal Current |
6.4A |
| Nominal output current I2N |
4.1A |
| Number of Analogue Inputs |
3 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
6 |
| Number of Digital Outputs |
1 |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
1.5kW |
| Power Consumption |
N/A |
| Relative symmetric net frequency tolerance |
5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for BACnet |
false |
| Supporting protocol for CAN |
true |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
true |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherNet/IP |
true |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
true |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
true |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
true |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Type of converter |
U converter |
| Width |
72mm |
| With control element |
true |
| With optical interface |
false |
| With PC connection |
true |
