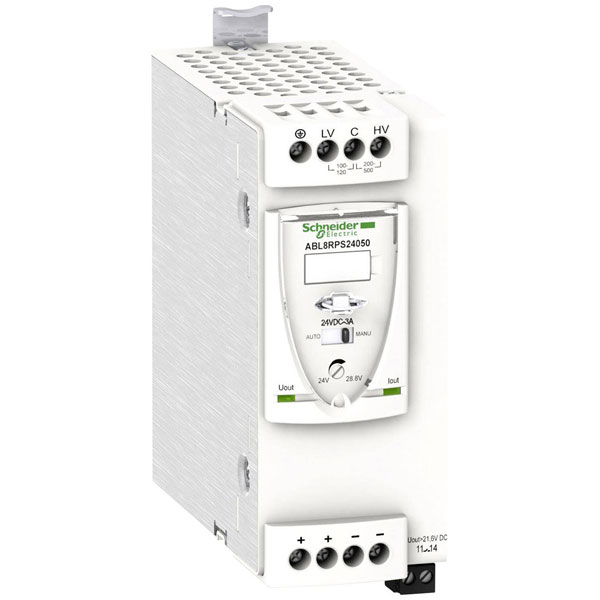

Schneider Electric ABL8RPS24050 rail mounted PSU 24VDC 5A DIN rail

The Schneider Electric ABL8RPS24050 is a rail-mounted power supply unit that provides a reliable 5 A output. Designed for industrial applications, it ensures consistent performance and easy integration into DIN rail systems. This PSU is ideal for use in automation panels and other electrical installations requiring stable power delivery.

Type	Rail mounted PSU (DIN)
Output Voltage	24V DC
Output Current	5A
1st secondary output voltage	24 - 28.8V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	N/A
Built-in Width	N/A
Connection	Punchdown block
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	125mm
Direct mounting possible	false
Height	143mm
Max. output current	5A
Max. output current 1	5A
Max. output current 2	N/A
Max. output current 3	N/A
Maximum Input Volage	500V
Maximum Operating Temperature	60°C
Minimum Input Volage	100V
Nominal value output current 1	5A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	None
Power Consumption	N/A
Power Output	120W
Rated supply voltage AC 50 Hz	100 - 500V
Rated supply voltage AC 60 Hz	100 - 500V
Rated supply voltage DC	N/A
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	None
Stabilized	true
Suitable for distribution board	false
Suitable for rail mounting	true
Suitable for safety functions	true
Type of electric connection	Screw connection
Voltage type (supply voltage)	AC
Wall mounting possible	false
Weight	0
Width	56mm
Width in number of modular spacings	N/A
