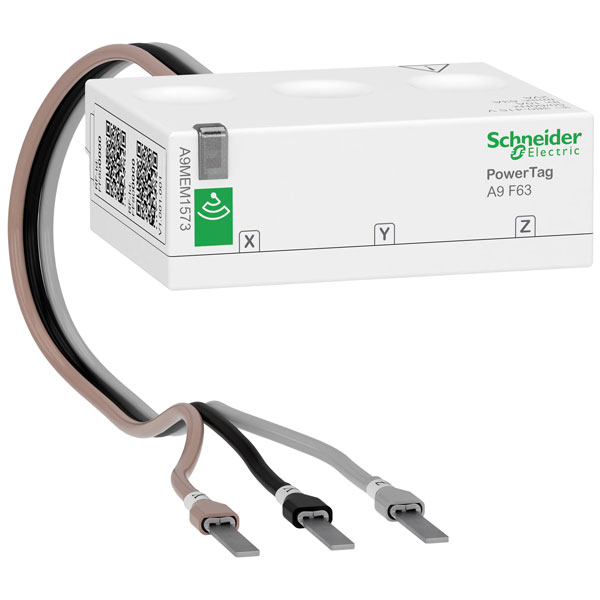

Schneider Electric A9MEM1573 PowerTag Flex meter 63A direct measure

Schneider Electric's A9MEM1573 electricity meter measures energy consumption in AC systems. It is installed in residential, commercial, or industrial settings for accurate energy monitoring. This energy meter is designed to ensure efficient energy management and cost savings.

Type	Electricity meter
Accuracy Class	N/A
Approval	N/A
Calibrated	true
Colour	White
Degree of protection (IP)	IP20
Degree of protection (NEMA)	1
Depth	43mm
Dim	(L x W x H) 54 x 43 x 19.5 mm
EEC40 signature	false
Energy type	Effective power and reactive power
Escapement mechanism	false
Frequency	50 - 60Hz
Height	19.5mm
IP Rating	IP00
Length	54mm
Max. current (Imax)	63A
Measurement type load profile	false
Model	Direct measurement
Mounting method	Plug-in technique
Nominal current (In)	63A
Nominal voltage (Un) L-L	380 - 415V
Nominal voltage (Un) N-L	N/A
Number of positions total (counter)	N/A
Operating Voltage	380 - 415V AC
Pole type	Three conductor
Power Consumption	N/A
Pulse output	None
Pulse rate	N/A
Pulse type	N/A
Suitable For	Purchase
Tariff control	N/A
Tariff type	One-tariff
Type of indication	None
Type of interface	Other
Type of meter	Electronic
Weight	38g
Width	43mm
Width in number of modular spacings	3
With lock code	false
