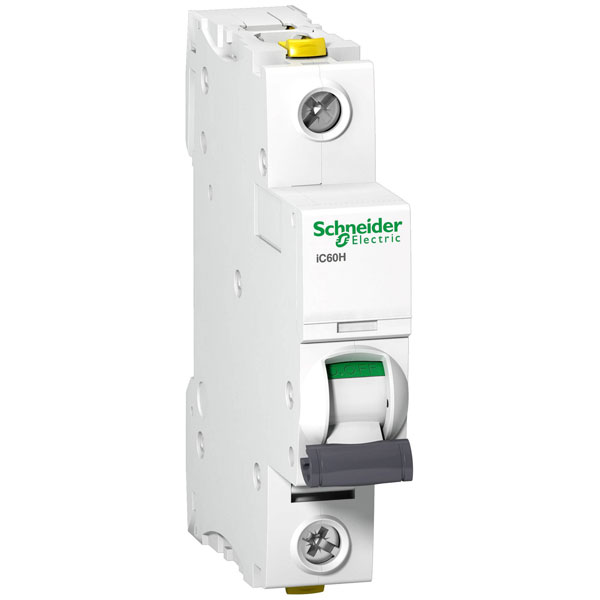

Schneider Electric A9F07125 iC60H Circuit Breaker 25A 230V 1P

Schneider Electric
Order Code:

06-5291

Brand: Schneider Electric MPN: A9F07125 EAN-13: 3606480438370
Qty Unit Price (Ex VAT)
1+ £17.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 weeks

Schneider Electric produces the A9F07125 circuit breaker, which is designed for over-current and short-circuit protection. This miniature circuit breaker operates at 25 A and 230 V, making it suitable for residential or commercial installations. It is typically used for safeguarding electrical circuits and ensuring reliable power distribution.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 25A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 18 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 4
Pollution degree 3
Power loss 3W
Rated current 25A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 230V
Release characteristic C
Voltage Rating 230V
Voltage type AC/DC
Width 18mm
Width in number of modular spacings 1
