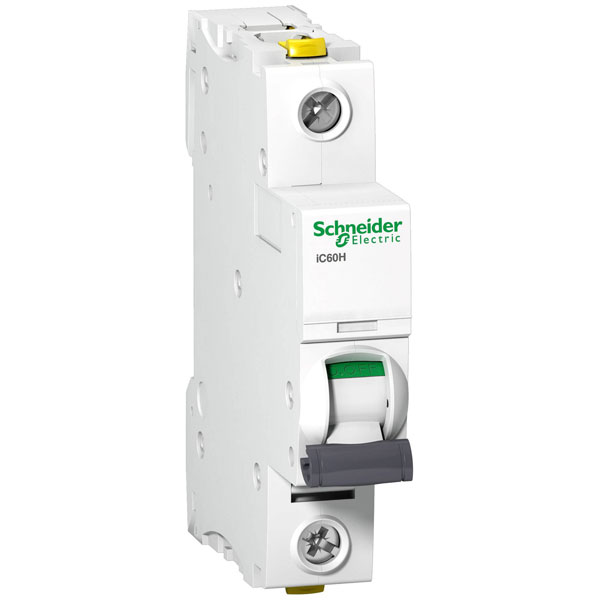

Schneider Electric A9F06116 Acti9 Circuit Breaker 1P 16A 230V LS 60H

Schneider Electric
Order Code:

06-5275

Brand: Schneider Electric MPN: A9F06116 EAN-13: 3606480437816
Qty Unit Price (Ex VAT)
1+ £4.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
124 in stock, despatched in 4 working days

The Schneider Electric A9F06116 circuit breaker is a 16 A device designed for over-current and short-circuit protection at 230 V. It serves as a miniature circuit breaker for installation protection in residential and commercial electrical systems. This product is typically used to safeguard electrical circuits by automatically switching off in case of faults.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 16A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 18 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 4
Pollution degree 3
Power loss 2.4W
Rated current 16A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 230V
Release characteristic B
Voltage Rating 230V
Voltage type AC/DC
Width 18mm
Width in number of modular spacings 1
