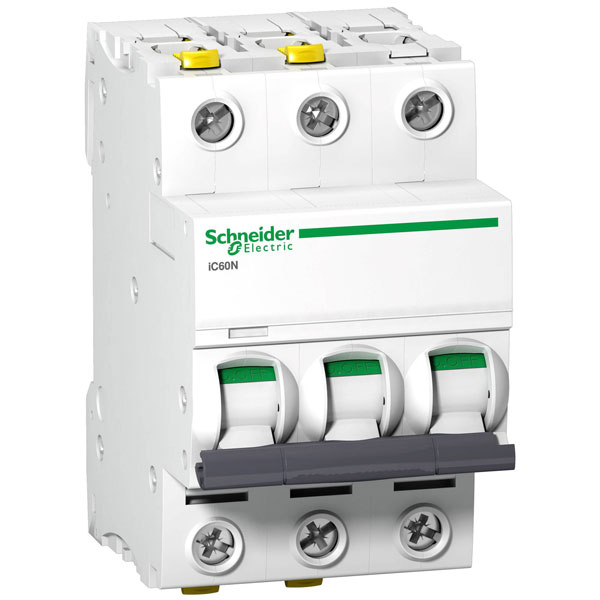

Schneider Electric A9F04332 Circuit Breaker 32A 400V IP20 10000A capacity

Schneider Electric
Order Code:

06-5265

Brand: Schneider Electric MPN: A9F04332 EAN-13: 3606480440694
Qty Unit Price (Ex VAT)
1+ £65.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

Schneider Electric's circuit breaker A9F04332 is rated at 32 A and operates at 400 V. It is designed for electrical protection in building installations. Typical applications include residential and commercial environments requiring reliable circuit interruption.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 25mm²
Connectable conductor cross section solid-core 1 - 35mm²
Current limiting class 3
Current Ratng 32A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 54 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 4
Pollution degree 3
Power loss 2.8W
Rated current 32A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 10kA
Rated voltage 400V
Release characteristic C
Voltage Rating 400V
Voltage type AC/DC
Width 54mm
Width in number of modular spacings 3
