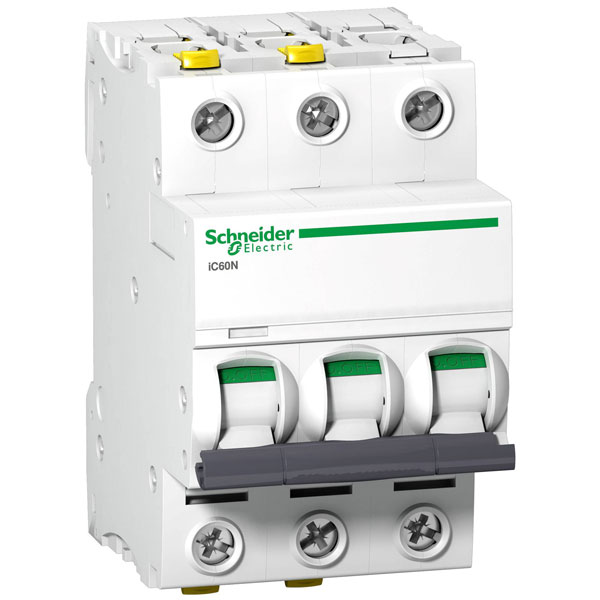

Schneider Electric A9F04316 Circuit Breaker 16A 400V 10000A IP20 54mm wide

Schneider Electric
Order Code:

06-5263

Brand: Schneider Electric MPN: A9F04316 EAN-13: 3606480440663
Qty Unit Price (Ex VAT)
1+ £30.09
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Schneider Electric A9F04316 circuit breaker is a 16 A unit with a 400 V rating. It is designed to protect electrical circuits from overloads and short circuits. This circuit breaker is typically used in industrial and commercial electrical systems.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 16A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 54 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 4
Pollution degree 3
Power loss 2.4W
Rated current 16A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 10kA
Rated voltage 400V
Release characteristic C
Voltage Rating 400V
Voltage type AC/DC
Width 54mm
Width in number of modular spacings 3
