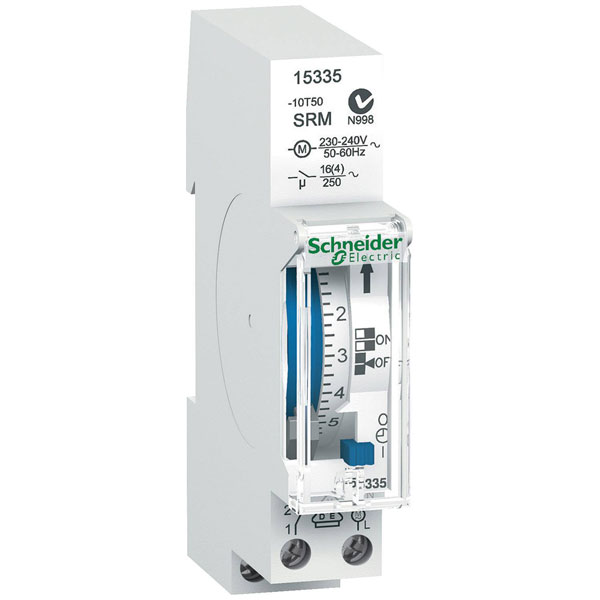

Schneider Electric 15335 DIN Mount Timer 230V Analogue 24h Mech 1pc

The Schneider Electric 15335 is a robust DIN rail mount timer designed for precise time control applications. This analogue timer operates at 230 V, making it suitable for standard electrical systems. Ideal for automation tasks, it ensures reliable operation in industrial and commercial settings.

Type	DIN rail mount timer
Size/ Dimensions	(L x W x H) 66 x 18 x 90 mm
Length	66mm
24 h program	true
60 min program	false
Accuracy per day	1s
Annual program	false
Automatic switching summer/winter time	false
Autonomy in hours	0
Autonomy in years	N/A
Channels	1-channel
Colour	White
Contact Type	N/A
Degree of protection (IP)	IP20
Depth	66mm
Frequency supply voltage	50 - 50Hz
Height	90mm
Mains synchronous	false
Max. switching power LED	300W
Misc Attribute 1	analogue
Mounting method	DIN rail
Nominal switching current at 250 V AC	16A
Number of Channels	1
Operating Voltage	230V
Potential free switch contact	true
Program shift divide 1	15min
Program shift divide 2	N/A
Quartz controlled	false
Shortest switching time channel 1	15min
Shortest switching time channel 2	N/A
Suitable for manual operation	true
Supply Voltage	230 - 230V
Switching preselection	true
Voltage type (supply voltage)	AC
Weekly program	false
Width	18mm
Width in number of modular spacings	1
