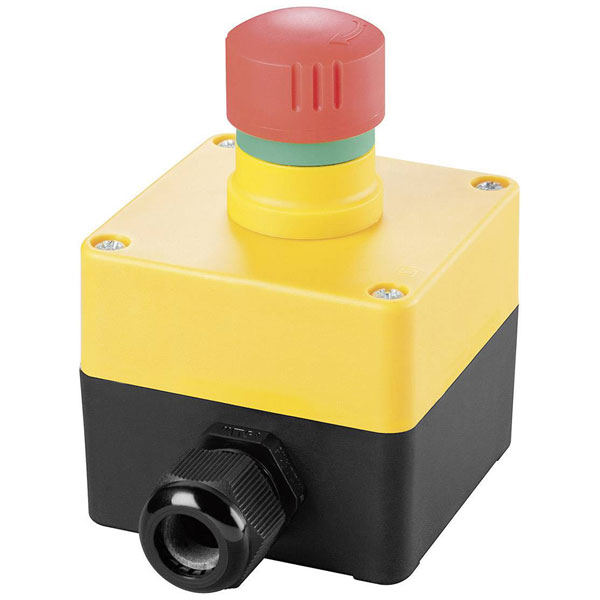

Schlegel SIL22_QRUV_118308 Kill Switch 250V 16A IP65 Turn-to-Release

The Schlegel SIL22_QRUV_118308 kill switch is a robust emergency off switch rated for 250 V AC and 16 A with two galvanically isolated breakers, featuring an IP65 rating for protection against dust and water ingress. It's designed for easy integration into safety systems and control panels, providing a reliable solution for urgent power disconnection in industrial and commercial settings. This component typically finds applications in machinery and equipment requiring rapid shutdown capabilities for safety compliance.

Type	Kill switch
Bounce duration	< 9ms
Contact Resistance	20 mΩ
Contact Type	2 breakers
Durability	(Tambient 20 ºC) 50000 cycles
Electrical lifespan	(Contactor b. rated load) 1 x 106 operating cycles
Functions	latch
IP Rating	IP65
Lighting type	None
Max. permanent current	16A
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	2 forced NC contacts, galvanically isolated
Print motif	Arrow symbol
Switching Capacity	(acc. to IEC/EN 60947-5-1: Usage category DC13 Q600) AC15 = 250 V/3 A/440 V/1.6 A, DC13 = 440 V/0.12 A/ 250 V/0.2 A/ 125 V/0.4 A/ 60 V/1 A/ 24 V/2A
Switching current (max.)	16A
Switching Voltage	250V AC
Temperature Range	-25 to +55 ºC°C
Unlocking mechanism	Turn
