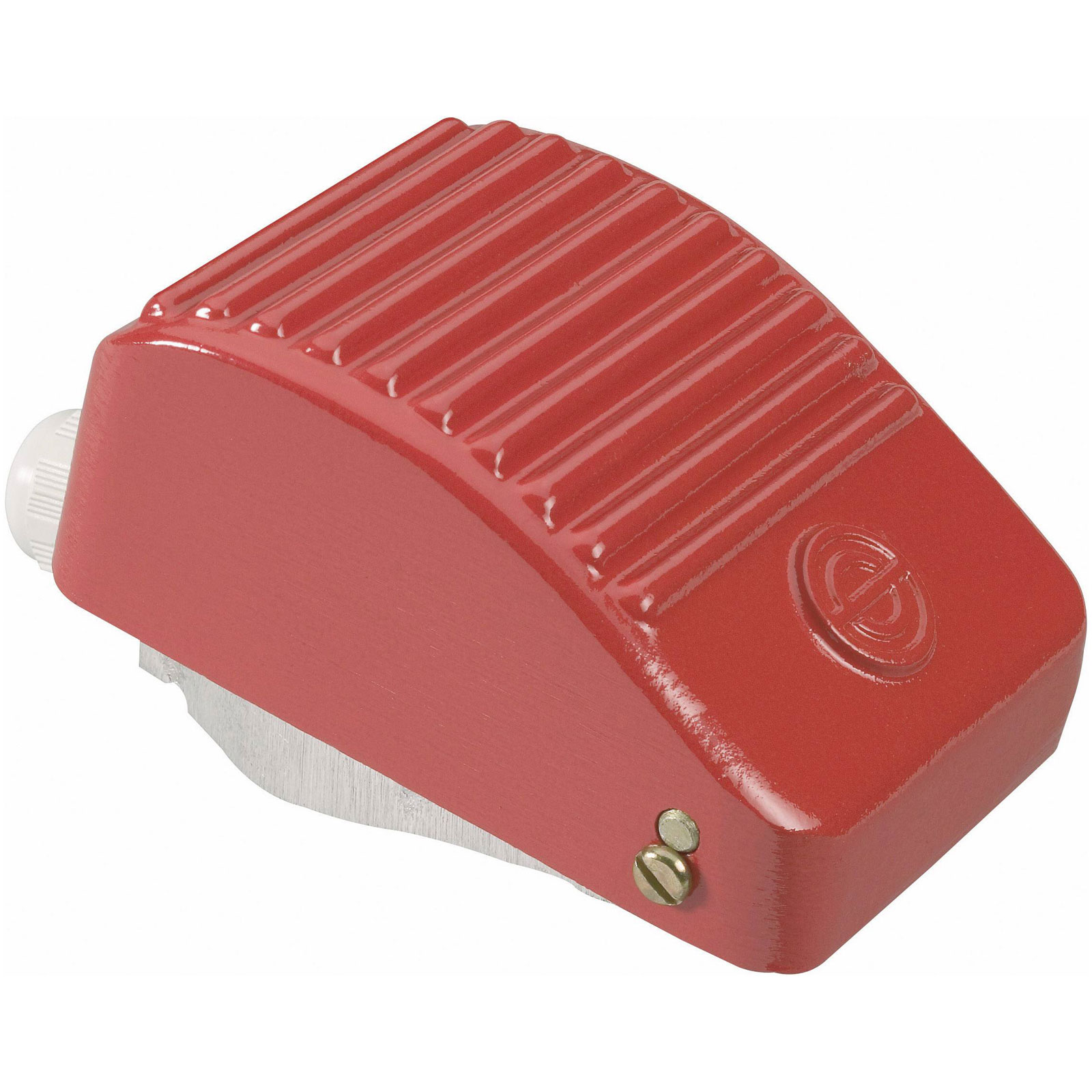

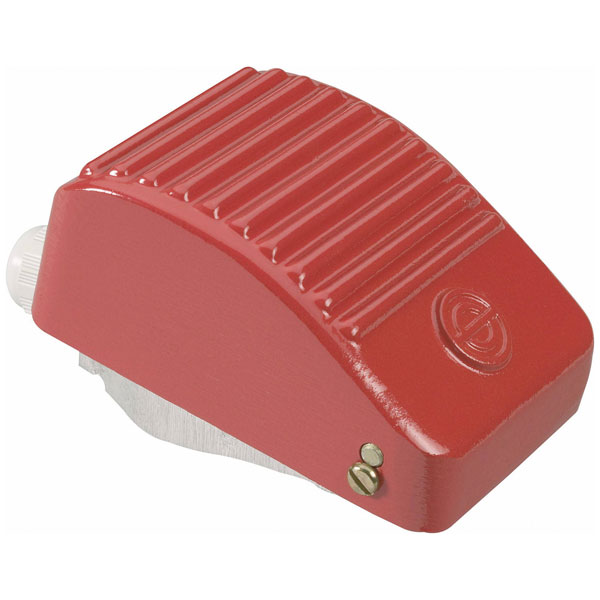

Schlegel KEF RD Foot Switch 250V AC 10A 1-Pedal IP65 Dust & Water Resistant

Schlegel
Standard range
Order Code:

10-5395

Brand: Schlegel MPN: KEF RD EAN-13: 2050000223990
Qty Unit Price (Ex VAT)
1+ £96.51
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched in 4 working days

The Schlegel KEF RD is a robust foot switch designed for electrical systems operating at 250 V AC and 10 A, featuring a one-pedal design with one normally open and one normally closed contact. This IP65-rated switch ensures reliable performance in harsh environments, making it suitable for industrial applications. Common uses include operating machinery or equipment hands-free, allowing for enhanced safety and convenience.
Type Foot switch
Casing Light alloy
Casing/button colour Red
Connection Screws
Contact material Ag/Ni (hard silver)
Contact resistance ≤ 20mΩ
Dim (L x W x H) 116 x 85 x 67 mm
Durability 106 Switching cycles:
Electrical lifespan 1 Million actuators
Functions momentary
Height 67mm
IP rating IP65
Length 116mm
Material Metal
Max. temperature +70°C
Min. temperature -30°C
Misc Attribute 1 1 normally open contact/1 normally closed contact
Misc Attribute 2 573482.KEF IN RED pack of 10
Misc Attribute 3 KEF RD
Operation type 1-pedal
Switch position 1 x Off/(On)
Switching capacity 10 (6) A/250 V/AC/6 (3) A/440V AC
Switching Current 10A
Switching current (max.) 10A
Switching voltage 250V AC
Temperature range -30 - +70 ºC°C
Thread Size PG11
Width 85mm
