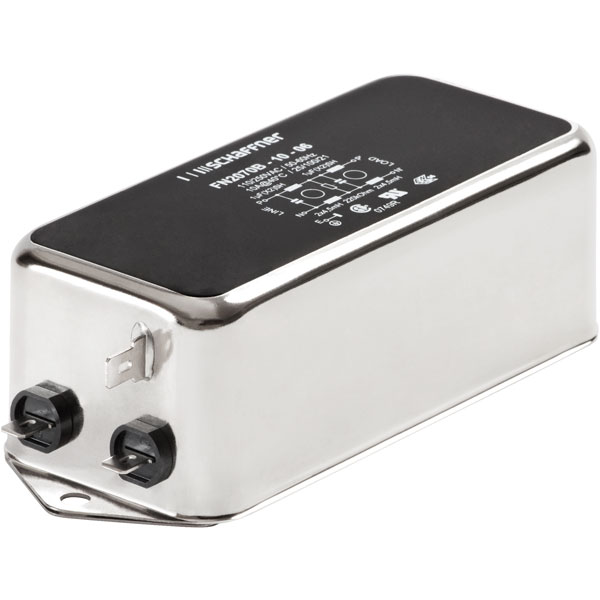

Schaffner FN 2070 Multi-Stage EMI Filters Single Phase Chassis Mount

Schaffner EMC Brand: Schaffner EMC

These two-stage EMI filters are designed for quick and simple chassis mounting. The filters provide a high conducted attenuation performance and are perfect for high frequency attenuation tasks in applications such as building automation, industrial machinery, data processing equipment, etc.

  • High differential and common-mode attenuation
  • High frequency attenuation
  • Faston terminals 6.3mm
  • Operating temperature: -25°C to +100°C
  • Operating voltage max. 250V AC
  • MTBF 1,550,000 hours
  • Design correseponding to UL, CSA, IEC/EN
  • UL 94V-2 rated
Description Image Product Buy Pricing (Ex VAT) Current Rating Voltage
Schaffner EMC FN2070-3-06 3A Two Stage Chassis Mount Filter
Schaffner EMC FN2070-3-06 3A Two Stage Chassis Mount Filter
Standard range
Order code: 58-5512
MPN: FN 2070-3-06

18 available to back orderBack-order availability date - 09/01/2026
1+ £53.76
50+ £42.33
Price per unit Ex VAT 		3A 250V
Schaffner EMC FN2070-6-06 6A Two Stage Chassis Mount Filter
Schaffner EMC FN2070-6-06 6A Two Stage Chassis Mount Filter
Standard range
Order code: 58-5513
MPN: FN 2070-6-06

4 available to back orderBack-order availability date - 09/01/2026
1+ £68.20
50+ £53.70
Price per unit Ex VAT 		6A 250V
Order codePart #I (A)L (mH)Cx (µF)Cy (nF)Resistance (kΩ)
58-5512FN 2070-3-0639.80.474.7470
58-5513FN 2070-6-0667.814.7220
