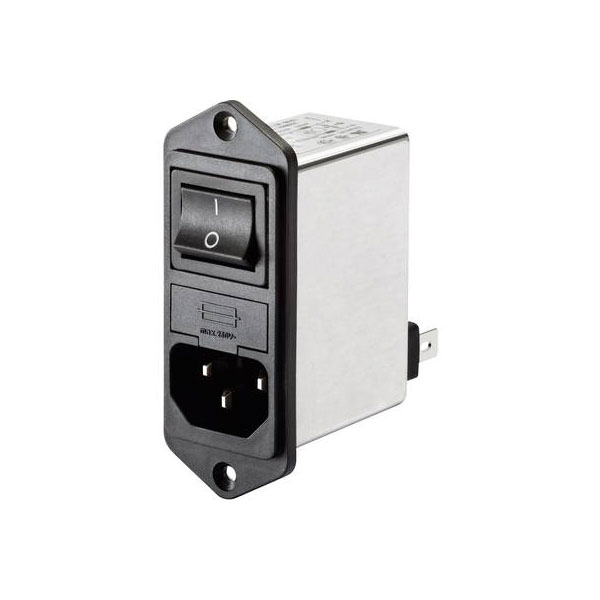

Schaffner EMC FN284-4-06 4A Faston Compact IEC inlet Filter

A 4A small form factor power entry module that has a left/right flange mount configuration. The module is comprised of an IEC inlet, mains filter with dual fuse and a 2-pole rocker switch. Suitable applications include portable equipment, consumer goods, EDP and office equipment, 1-phase power supplies, switch mode power supplies, test and measurement equipment.

• High conducted attenuation performance
• Connection blade terminal 6.3mm
• Fuse Ø5 x 20mm
• Flammability better than UL 94V-2

Type	Line filter
Current Rating	4A
Dimensions	50 x 65 x 43.1mm
Frequency Range	50 to 400Hz
IP Rating	IP40
Maximum Temperature	+85°C
Min. temperature	-25°C
