Saia V4NCS2A1-0,5M Microswitch 250V 5A On/On IP67 Lateral Connection

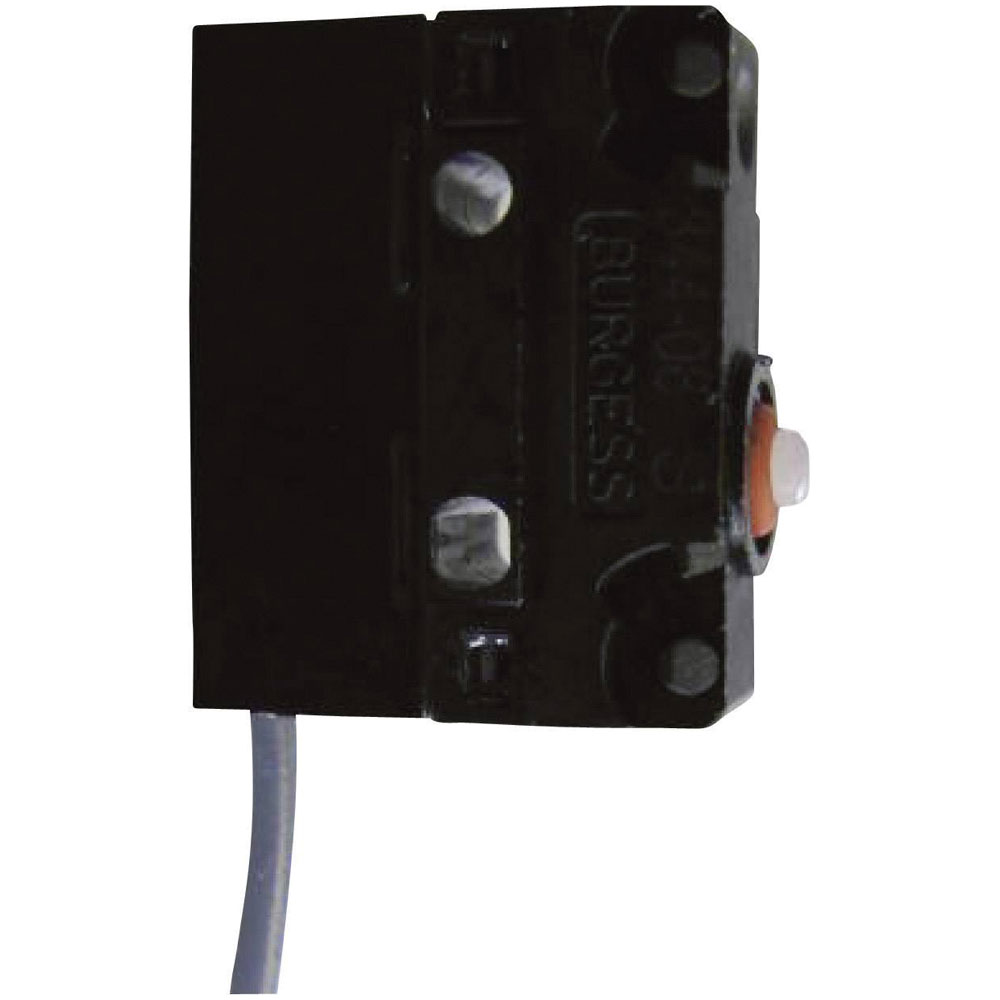

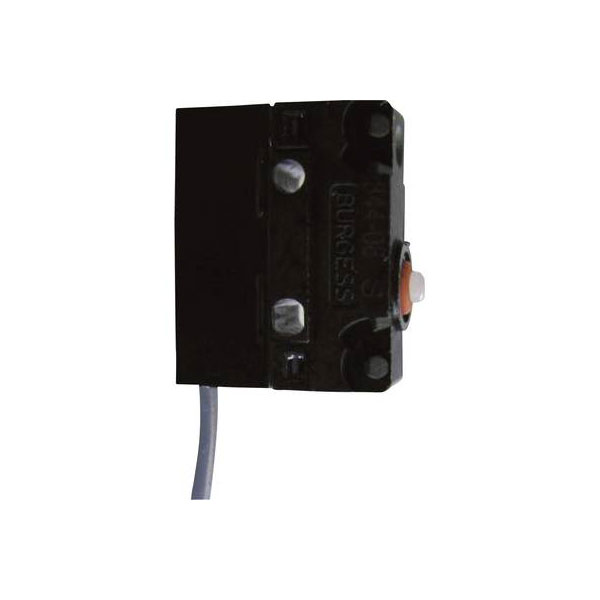

Image Representative of Range

Saia V4NCS2A1-0,5M Microswitch 250V 5A On/On IP67 Lateral Connection

Saia
Standard range
Order Code:

12-8843

Brand: Saia MPN: V4NCS2A1-0,5M EAN-13: 2050000965937
Qty Unit Price (Ex VAT)
1+ £19.04
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
18 in stock, despatched in 4 working days

The Saia V4NCS2A1-0,5M microswitch is a compact switch designed for momentary action, operating at 250 V AC and 5 A. Featuring IP67 protection, it is suitable for applications requiring environmental resistance, such as industrial machinery or outdoor equipment. With a 1 x On/(On) changeover mechanism, it is ideal for precise control tasks in various components and devices.
Type Microswitch
Actuating force 0.9N
Contact material Ag
Contact type 1 change-over
Dim (L x W) 19.85 mm x 6.4 mm
Functions momentary
IP rating IP67
Length 19.85mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 V4NCSK2A1-0.5M
Misc Attribute 2 V4NCS2A1-0,5M
Misc Attribute 3 1 changeover
Operation type Steel lever (straight)
Switch position 1 x On/(On)
Switching Current 5A
Switching current (max.) 5A
Switching voltage 250V AC
Temperature range -40 - +85°C
Width 6.4mm
