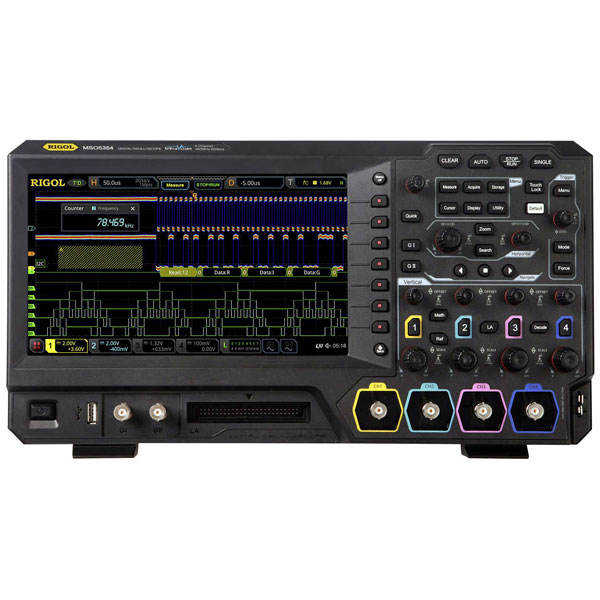

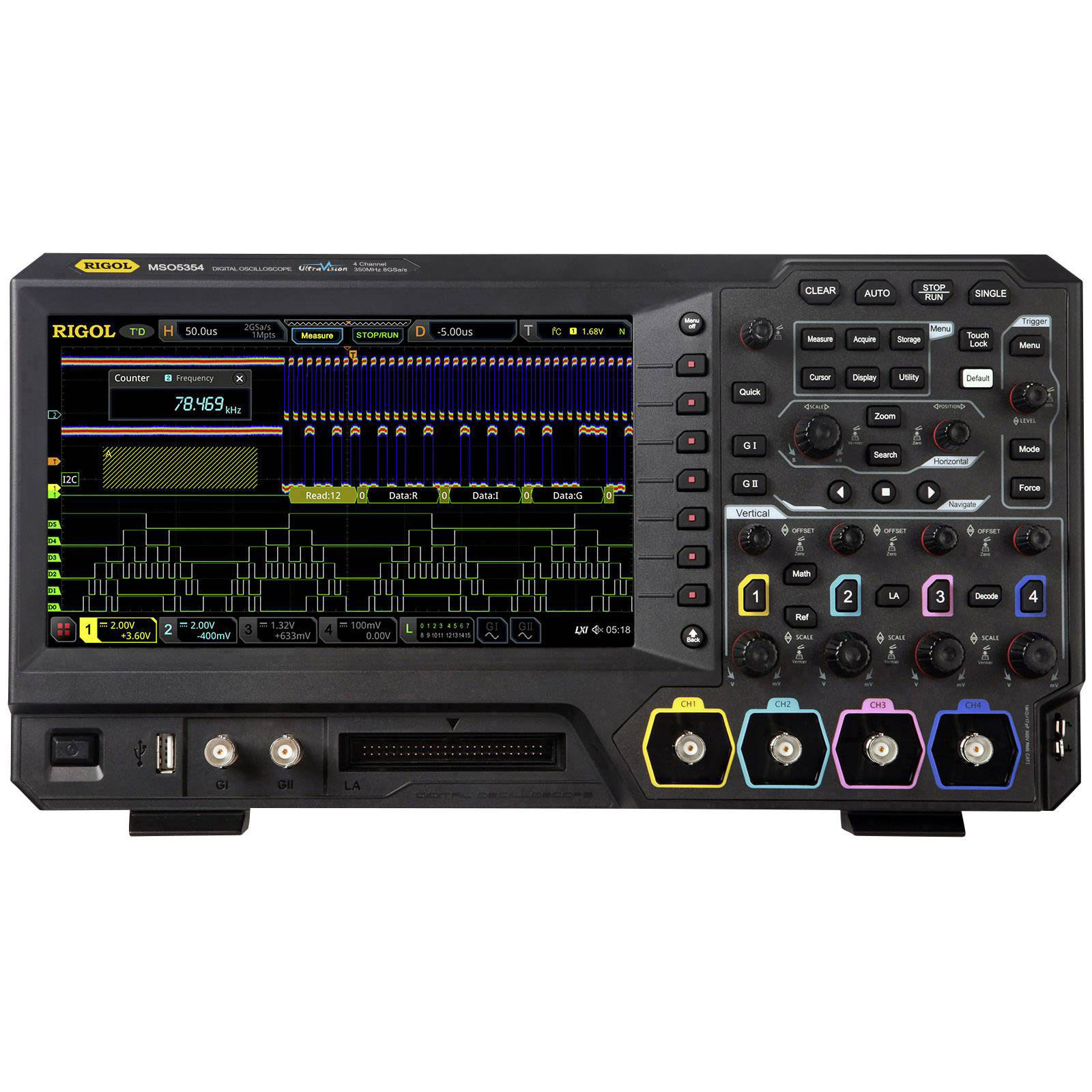

Rigol MSO5072 Oscilloscope, 70 MHz, 8 GS/s, 9" Display, USB, HDMI, LAN

Rigol's MSO5072 is a digital storage oscilloscope featuring a 70 MHz bandwidth and 8 GS/s sampling rate. It is equipped with 100 MP memory depth and 8-bit resolution, ideal for precise waveform analysis. This oscilloscope is commonly used in electronics testing and debugging applications.

No. of Channels	2
Bandwidth	70MHz
Type	Digital
Manufacturers Warranty	1 Year
Screen Size	1024 x 600
Calibrated to	Manufacturer's standards (no certificate)
Channel Memory Depth	100Mpixel
Channel sample rate	8GS/s
Dim	(L x W x H) 130 x 367 x 200 mm
Height	200mm
Input coupling	AC or DC
Input Impedance	1 MΩ ±1 %
Length	130mm
Power supply (details)	100 V - 240V
Reading Category	CAT I
Resolution	8Bit
Vertical deflection	1 mV/div - 10 V/div
Weight	3.5kg
Width	367mm
