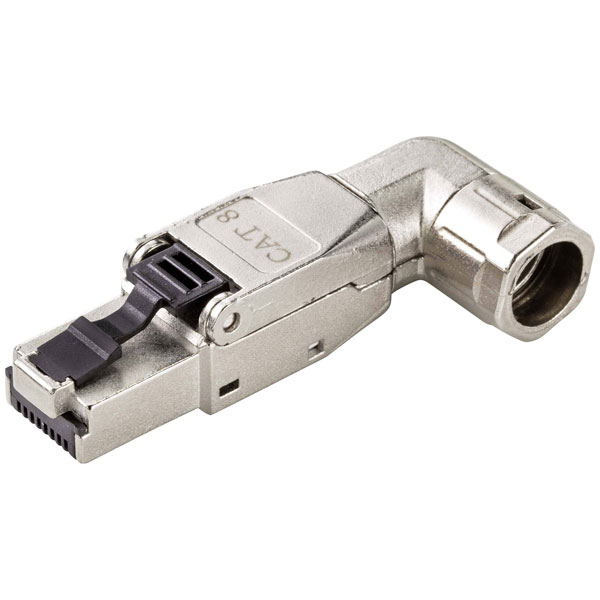

Renkforce RF-4601166 Connector CAT 8.1 STP FIELD INSTALL right angle 8P8C

Renkforce RF-4601166 is a robust connector designed for high-performance networking applications, featuring CAT 8.1 standards that ensure optimal data transmission and shielding against electromagnetic interference through its shielded twisted pair (STP) configuration. The connector is constructed for FIELD INSTALL usage, facilitating versatile and efficient deployment in complex network infrastructures. Its right-angle design accommodates installation in spatially restricted environments, making it suitable for both commercial and industrial networking settings. Engineered with 8P8C pin configuration, equivalent to the RJ45 standard, this connector is employed in scenarios demanding high-speed data transfer rates and reliable connectivity, such as data centres, server rooms, and high-demand IT environments.

Type	Connector, right angle
AWG (min.)	26
AWG max.	22
Connector standard	RJ45
Connector Type	Connector, right angle
Contact Material	Brass gold plated
Content	1
Height	12.46mm
Length	54mm
Material	Zinc (die-cast)
Min. temperature	-10°C
Minimum Operating Temperature	-10°C
No. of pins	8P8C
Product Type	RJ45 plug
Seal Type	Screw-on
Specification	CAT 8.1
Type A	RJ45 8p8c plug
Weight	20g
Width	24.5mm
