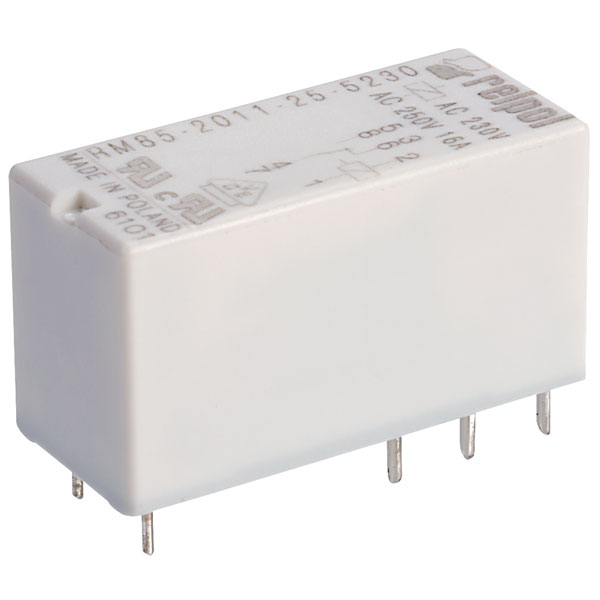

Relpol RM85-2011-25-5230 SPDT Miniature Relay 230V AC 16A PCB

Relpol
Order Code:

61-6046

Brand: Relpol MPN: RM85-2011-25-5230

Discontinued


A 16A 230V AC miniature relay from the RM85 series. The relay may be PCB mounted or fitted into a suitable relay socket. Additional features include high power handling and 5000V 10mm reinforced insulation. Suitable for a wide range of applications.


  • Contact configuration SPDT
  • Rated current 16A
  • Sealed for wave soldering and cleaning
  • IP40 Protection
Contact Configuration SPDT
Switching Current 16A
Coil Resistance 38,500Ω
Length 29mm
Width 12.7mm
Height 15.7mm
Mounting Type PCB/socket
Operating Temperature -40 to +70°C
Switching Voltage Max (AC) 440V
