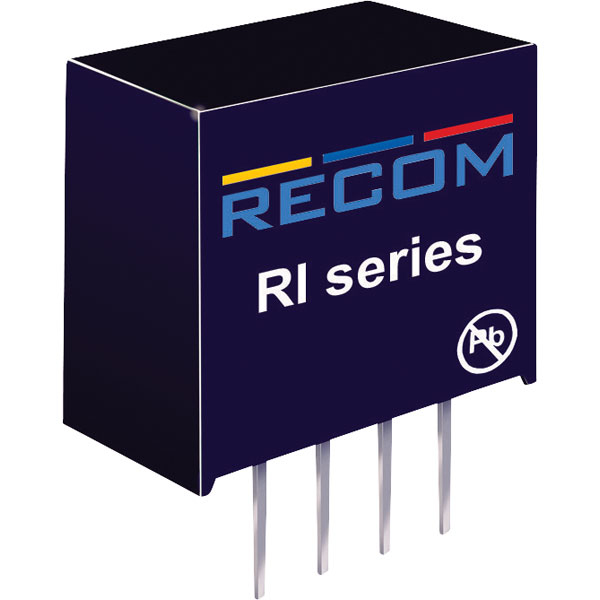

Recom SIP4 2W Single Output DC/DC Converter RI Series

The Recom RI series of 2W Unregulated Single Output DC/DC Converters have been specifically designed for applications where board space is at a premium. The 2W DC/DC Converters have only a slightly larger foot print than the RO series 1W converters.

With efficiencies up to 87%, the full output power is available over the operating temperature range -40°C to +85°C, and the converters can be used in ambient temperatures of up to 100°C with derating. The wide selection of input voltage and output voltage options plus an I/O Isolation of 1kV DC as standard, makes these converters suitable for many industrial applications. This range also includes industry standard pin-outs and an option for continuous short circuit protection (/P).

• 1kV DC Isolation
• No External Components Required
• Optional Continuous Short Circuit Protected
• UL94V-0 Package Material
• No Heatsink Required
• Efficiency to 85%
• Available in 5, 12 and 24V input options
• Available in 5, 12 and 15V output options
