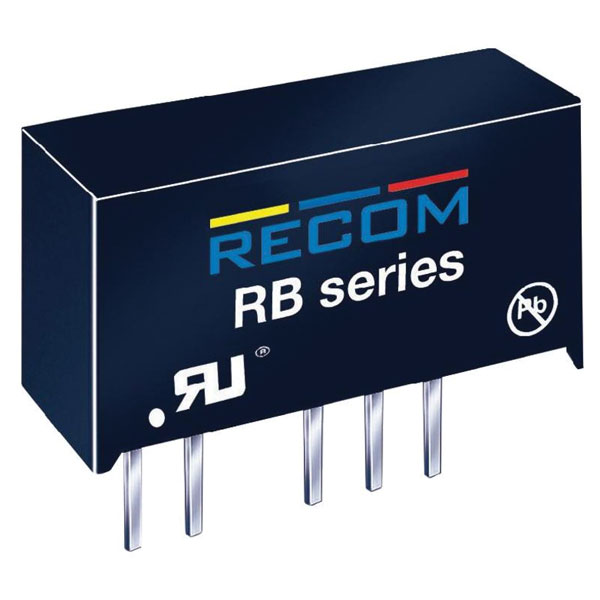

Recom 1W SIP7 Unregulated DC/DC Converter Dual Output, Type RB/PB/P Series

Recom Brand: Recom

The Recom RB Series of 1W Unregulated Dual Output DC/DC Converters have been designed for isolating or converting DC power rails in general purpose applications. Although low cost, they do not compromise on features and offer 1KV DC Isolation, a -40°C to +85°C operating temperature range, and industry standard pin-out. This SIP7 range also includes optional continuous short circuit protection (suffix /P).

  • Low Cost 1W Converter
  • Power sharing on dual output version
  • Optional Continuous Short Circuit Protected
  • Industry standard pin-out
  • 1kVDC Isolation
  • UL94V-0 Package Material
  • Efficiency to 85%
  • Available in 5, 12, 15 and 24V input options
  • Available in 5/5, 12/12, 15/15 and 24/24V output options
Description Image Product Buy Pricing (Ex VAT) Output Current Max Output Current Min Output Voltage Max Output Voltage Min Supply Voltage Range Power Rating Mounting Style Number of Outputs Temperature Range
Recom 10000107 RB-0509D 1W DC/DC Converter SIP7 5V In 9V/9V Out
Recom 10000107 RB-0509D 1W DC/DC Converter SIP7 5V In 9V/9V Out
Standard range
Order code: 49-7099
MPN: RB-0509D

8 in stock, despatched in 4 working days
1+ £7.14
5+ £6.89
Price per unit Ex VAT 		56mA -56mA 9V -9V 5V 1W SIP-7 2 -40 to +85°C
Recom RB-0512D Dual Output Converter SIL
Recom RB-0512D Dual Output Converter SIL
Standard range
Order code: 84-2272
MPN: RB-0512D

Order in multiples of 25


39 in stock, despatched in 4 working days
25+ £6.28
Price per unit Ex VAT
Recom RB-0515D Dual Output Converter SIL
Recom RB-0515D Dual Output Converter SIL
Standard range
Order code: 84-2274
MPN: RB-0515D

38 in stock, despatched same dayAdditional quantity lead time 14 days
1+ £4.79
5+ £4.75
10+ £4.71
Price per unit Ex VAT
Recom RB-1205D 1W Dual Output Converter SIL
Recom RB-1205D 1W Dual Output Converter SIL
Standard range
Order code: 84-2276
MPN: RB-1205D

2 in stock, despatched in 4 working days
1+ £6.90
5+ £6.82
Price per unit Ex VAT
Recom 10001847 RB-1515D 1W DC/DC Converter SIP7 15V In 15V/15V Out
Recom 10001847 RB-1515D 1W DC/DC Converter SIP7 15V In 15V/15V Out
Standard range
Order code: 49-7103
MPN: RB-1515D

24 in stock, despatched in 4 working days
1+ £7.46
5+ £7.40
10+ £7.31
Price per unit Ex VAT 		33mA -33mA 15V -15V 15V 1W SIP-7 2 -40 to +85°C
Mftrs. PartInput (V)Output (V)Output (mA)EfficiencyLoad (max.)Order code
RB-0509D5.0V±9.0V ±56mA 76-79% ±470μF49-7099
RB-0512D5.0V±12V±42mA 78-82% ±220μF84-2272
RB-0515D5.0V15V±33mA 80-84% ±220μF84-2274
RB-0515D/P5.0V15V±33mA 80-84% ±220μF49-7100
RB-1205D12V±5.0V±100mA 70-78% ±470μF84-2276
RB-1212D12V±12±42mA 78-82% ±220μF84-2278
RB-1215D12V±15V±33mA 80-84% ±220μF84-2280
RB-1505D15V±5.0V±100mA 70-78% ±470μF49-7102
RB-1515D15V±15V±33mA 80-84% ±220μF49-7103
RB-2405D24V±5.0V ±100mA 70-78% ±470μF49-7113
RB-2412D24V±12V ±42mA 78-82% ±220μF84-2284
RB-241524V±15V±33mA 80-84% ±220μF84-2286
RB-2415D/P24V±15V ±33mA 80-84% ±220μF49-7104

Suffix 'P' for Continuous Short Circuit Protection
