Rean RCX5M-Z-001-1 XLR Connector Plug Straight 5 Pins 1pc

Name: Rean RCX5M-Z-001-1 XLR Connector Plug Straight 5 Pins 1pc
Brand: Rean
Price: 2.72 GBP
Availability: InStock

Standard range

Order Code:

06-3883

Brand: Rean MPN: RCX5M-Z-001-1

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (3)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£2.72

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

99 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

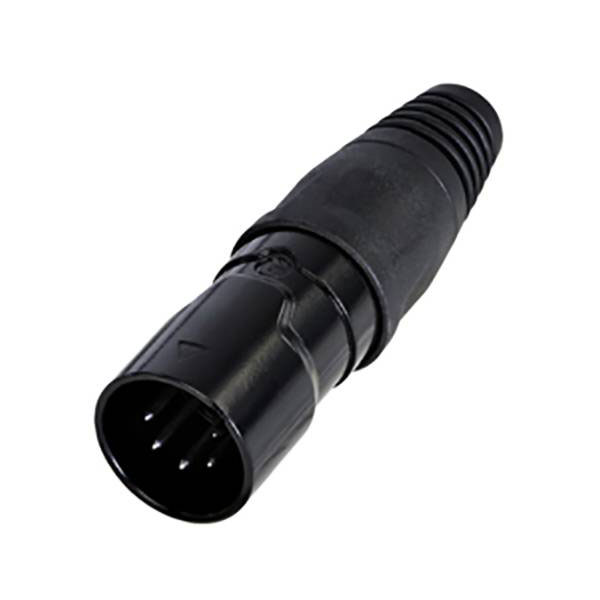

Manufactured by Rean AV, the RCX5M-Z-001-1 XLR connector is a straight plug with five pins. This connector is known for its robust construction and reliable connectivity. It is typically used in audio and video equipment for secure and professional-grade connections.

Connector type	Plug, straight
Cable Ø (max.)	8mm
Cable Ø range	5 - 8 mm
Cable Ø up to	5mm
Connection	Solder pins
Connector cross section	1.0mm²
Contact material	Brass
Manufacturer part #	RCX5M-Z-001-1
Material (details)	Contact coating: Tin
Mating cycles	1000
Misc Attribute	RCX5M-Z-001-1
Nominal current	7.5A
Nominal voltage	50V
Number of pins	5
Type	XLR connector
