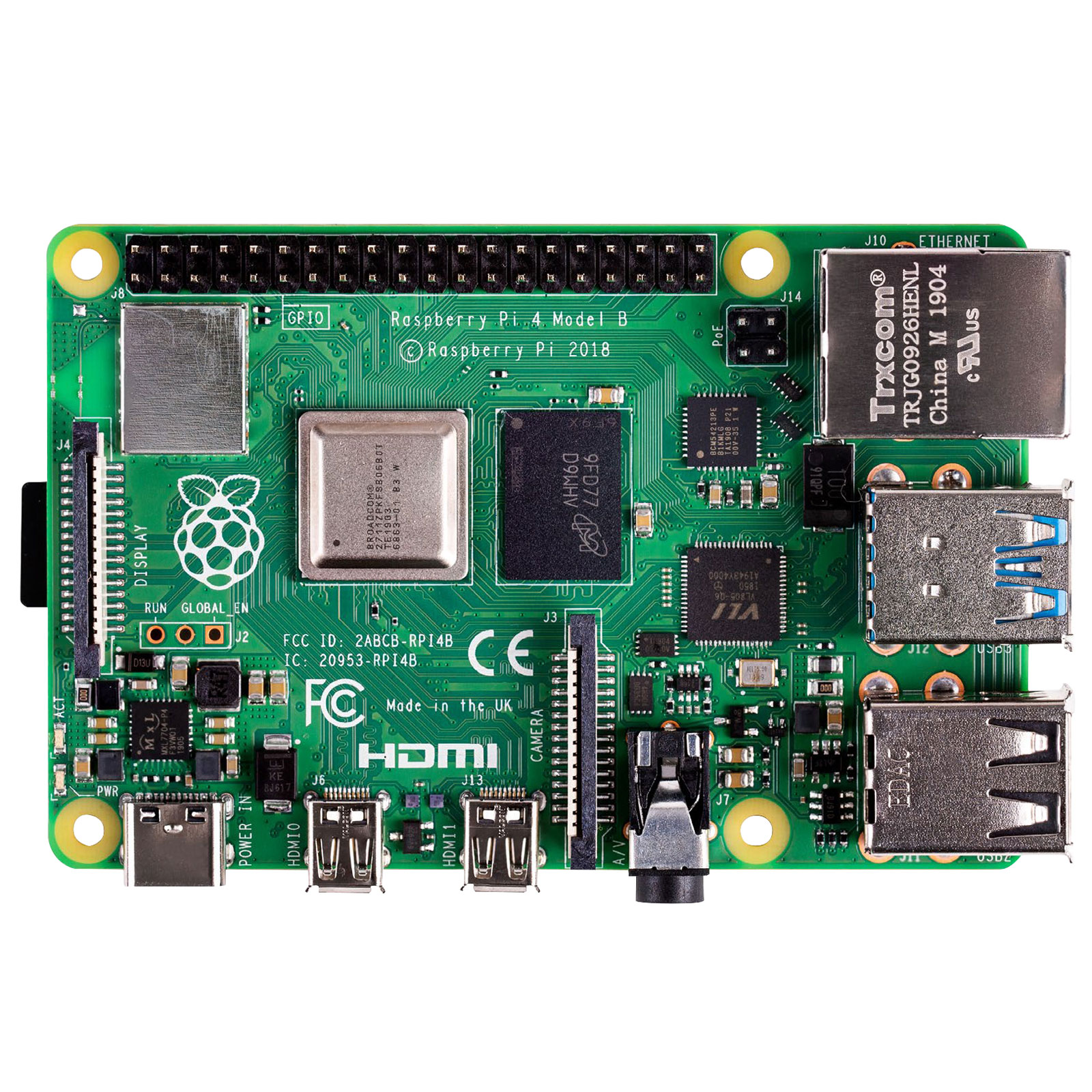

Raspberry Pi SC2337 Pi 4 Model B 3GB RAM 64-Bit Quad-Core Single Board Computer

The Raspberry Pi 4 Model B SC2337 offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the previous generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption.

For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

The product's key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 3GB of RAM, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

• 2× micro HDMI
• 2× USB 2.0
• 2× USB 3.0
• 1x Raspberry Pi 2-lane MIPI CSI Camera and 1x Raspberry Pi 2-lane MIPI DSI Display connector.
• 40 pin GPIO header
• Gigabit (1Gb/s) Ethernet RJ45 with PoE+ support
• 2.4/5GHz dual-band 802.11ac Wi-Fi 5 (300Mb/s)
• Bluetooth 5.0, Bluetooth Low Energy (BLE)
• MicroSD card slot
• USB-C power (5.1V, 3A (15W) with a combined 1.2A peripheral limit)

The Raspberry Pi 4 Model B Series will remain in production until at least January 2031, ensuring long-term availability and making it a dependable choice for future-proof product development.
