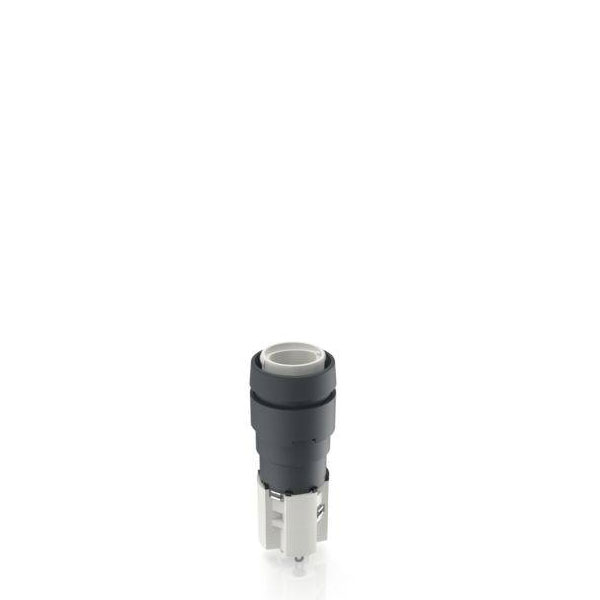

RAFI 1.15.108.451/0000 LUMOTAST 75 Push Button Illuminated 230V IP40

The RAFI LUMOTAST 75 is an illuminated push button switch, measuring 18 x 18 x 49 mm, designed to operate at 230 V and 4 A. It features IP40 ingress protection, making it suitable for indoor applications. This momentary switch is ideal for use in control panels and industrial machinery where visual feedback is essential.

Type	Illuminated push button
Switch Function	Momentary
Current Rating	4A
Mounting	Panel
Illumination	Clear
Actuating Force	3.5N
Connection	Soldering
Contact Material	Gold
Dim	(L x W x H) 18 x 18 x 49 mm
Height	49mm
IP Rating	IP40
Length	18mm
Lighting Type	incl. lighting
Misc Attribute 1	Aperture protruding
Misc Attribute 2	LUMOTAST 75
Recess depth	41.5mm
Recess Diameter	16.2mm
Shape	Round
Switching Voltage	230V
Width	18mm
