QuickCool QG-SHP-H1.00-B12.10-100MN Heat pipe 0.41 K/W 100x12.1x1 mm

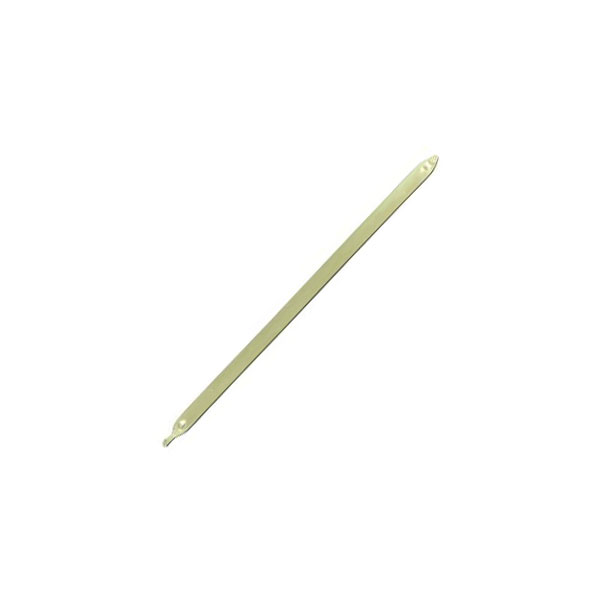

Image Representative of Range

QuickCool QG-SHP-H1.00-B12.10-100MN Heat pipe 0.41 K/W 100x12.1x1 mm

QuickCool
Order Code:

10-3801

Brand: QuickCool MPN: QG-SHP-H1.00-B12.10-100MN EAN-13: 2050001732934
Qty Unit Price (Ex VAT)
1+ £8.46
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
8 available to back orderBack-order availability date - 12/01/2026

QuickCool heat pipe model QG-SHP-H1.00-B12.10-100MN features excellent thermal conductivity with a resistance of 0.41 K/W. Designed with dimensions of 100 x 12.1 x 1 mm, it is ideal for compact electronic cooling solutions. This product is typically used in applications requiring efficient heat dissipation, such as in cooling systems for computer processors and electronic devices.
Type Heat pipe
Dimensions (L x W x H) 100 x 12.1 x 1 mm
Fastener length (front end) 12mm
Fastener length (tail end) 6mm
Height 1mm
Length 100mm
Material nickel plated
Max. temperature 250°C
Min. temperature 2°C
Misc Attribute 1 QG-SHP-H 1.00-B 12.10-100 MN
Misc Attribute 2 Mesh
Q (max) at T(e) (70 °C) 20W
Thermal resistance R(th) (max.) 0.41 K/W
Thermal resistance R(th) (min.) 0.25 K/W
Width 12.1mm
