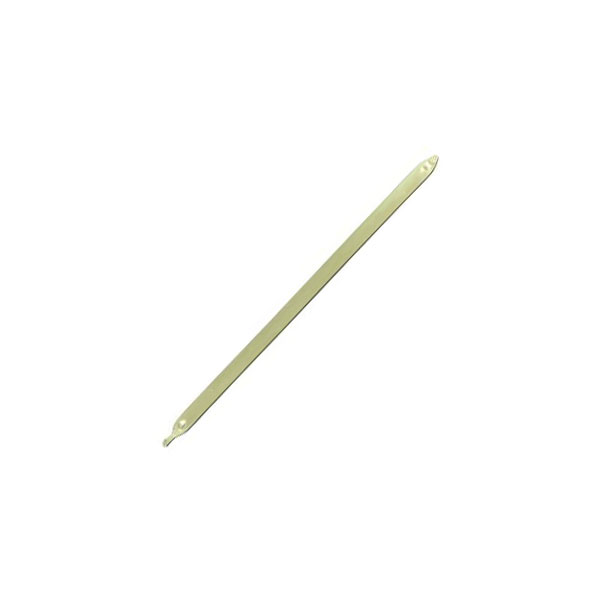

QuickCool QG-SHP-H1.00-B12.10-050MN Heat Pipe 0.41 K/W 50x12.1x1mm

QuickCool HexArmorQG-SHP-H1.00-B12.10-050MN heat pipe, which has dimensions of 50 x 12.1 x 1 mm and a thermal resistance of 0.41 K/W. It is designed to efficiently transfer heat, making it ideal for cooling applications in electronic devices. The compact design allows for integration into tight spaces, enhancing thermal management in various technological equipment.

Type	Heat pipe
Dimensions	(L x W x H) 50 x 12.1 x 1 mm
Fastener length (front end)	12mm
Fastener length (tail end)	6mm
Height	1mm
Length	50mm
Material	nickel plated
Maximum Temperature	250°C
Min. temperature	2°C
Misc Attribute 1	QG-SHP-H 1.00-B 12.10-050 MN
Misc Attribute 2	Mesh
Q (max) at T(e) (70 °C)	20W
Thermal resistance R(th) (max.)	0.41 K/W
Thermal resistance R(th) (min.)	0.25 K/W
Width	12.1mm
