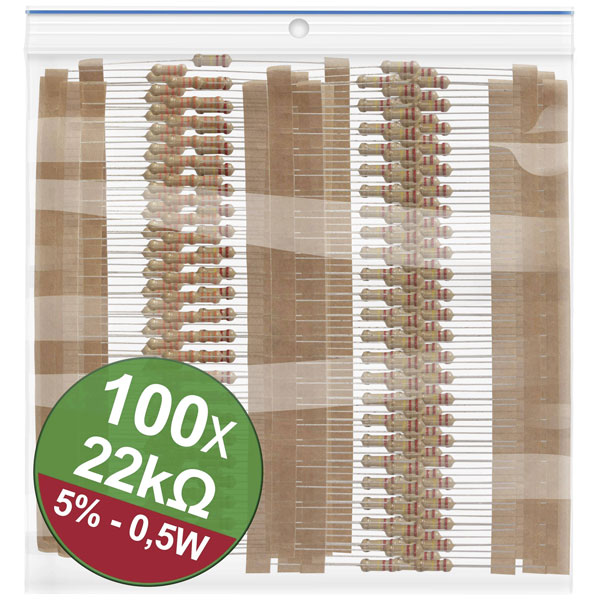

Quadrios 22P120 Carbon film resistor set 22 kΩ Axial lead 0.5 W 5% 1 Set

Quadrios 22P120 is a set of carbon film resistors designed with a resistance value of 22 kO, featuring an axial lead configuration and a power rating of 0.5 Watts. These resistors have a tolerance of 5%, ensuring their suitability for applications where precise resistance is not critical but consistency and reliability are essential. The carbon film construction offers a good balance of stability and cost-effectiveness, making them ideal for general-purpose electronic circuits, signal processing, and impedance matching tasks. These resistors are commonly employed in audio equipment, communication devices, and various other electronic applications where moderate power dissipation is required.

Type	Axial lead
Resistance	22kΩ
Tolerance	5%
Voltage	350V
Power Rating	0.5W
Content	1
Diameter	3.2mm
Dimensions	(Ø x L) 3.2 mm x 9 mm
Length	9mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-50°C
Minimum Operating Temperature	-50°C
Product Type	Carbon film Resistor (set)
Temperature Coefficient	700ppm/°C
