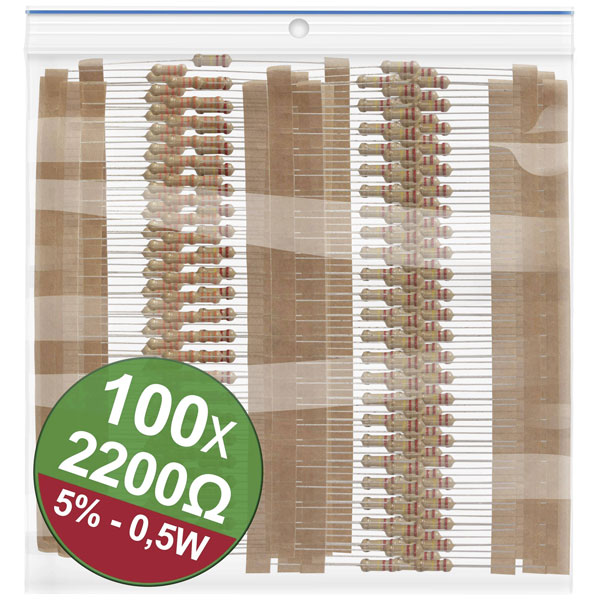

Quadrios 22P117 Carbon film resistor set 2.2 kΩ Axial lead 0.5 W 5%

Quadrios 22P117 is a carbon film resistor set featuring individual resistors with an impedance of 2.2 kO. This set comprises resistors with axial leads, rated for power dissipation up to 0.5 watts, and offers a tolerance of 5 percent. Known for their reliability, these resistors are specifically designed for tasks that require stable resistance and low noise, making them suitable for a variety of electronic circuits and applications, including signal processing, voltage division, and current regulation. The construction utilises carbon film, which is a popular choice for many engineers due to its cost-effectiveness and consistent performance in standard operating conditions.

Type	Axial lead
Resistance	2.2kΩ
Tolerance	5%
Voltage	350V
Power Rating	0.5W
Content	1
Diameter	3.2mm
Dimensions	(Ø x L) 3.2 mm x 9 mm
Length	9mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-50°C
Minimum Operating Temperature	-50°C
Product Type	Carbon film Resistor (set)
Temperature Coefficient	700ppm/°C
