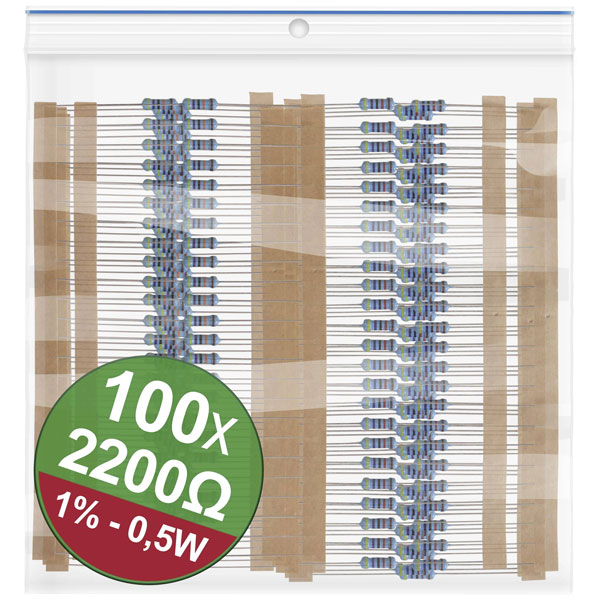

Quadrios 22P094 Metal film resistor set 2.2 kΩ Axial lead 0.5 W 1%

Quadrios 22P094 is a set of metal film resistors designed for precision applications requiring stable resistance values. Each resistor in the set possesses a resistance of 2.2 kO with a power rating of 0.5 W and a tolerance of 1%, providing consistent and reliable performance. The axial lead configuration ensures efficient connectivity for circuit integration. These resistors are ideal for use in electronics where minimising noise and achieving high precision is critical, such as in audio equipment, instrumentation, and telecommunications systems. Quadrios' design ensures these resistors maintain their specifications under various environmental conditions, making them suitable for both commercial and industrial applications.

Type	Metal film Resistor (set)
Resistance	2.2kΩ
Tolerance	1%
Voltage	350V
Power Rating	0.5W
PPM	100ppm/°C
Content	1
Diameter	3.5mm
Dimensions	(Ø x L) 3.5 mm x 9 mm
Length	9mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
