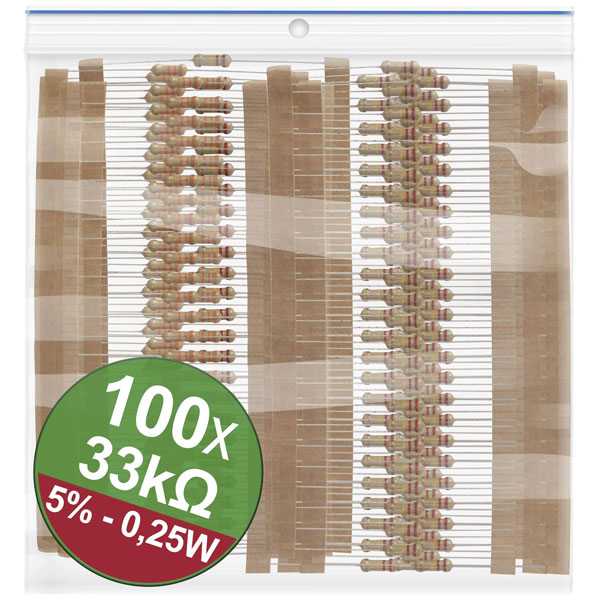

Quadrios 22P075 resistor set 33 kΩ axial lead 0.25 W 5% carbon film

Quadrios' 22P075 resistor set features 33 kO axial lead carbon film resistors, designed with precision for reliable performance in a range of electronic circuits. Each resistor in the set has a power rating of 0.25 W and a tolerance of 5%, making them highly suitable for applications where moderate precision and stability are required, such as in signal processing circuits or feedback networks. The carbon film construction offers a good balance between cost and performance, with a stable impedance and minimal inductance, making these resistors an economical choice for both prototyping and production.

Type	Axial lead
Resistance	33kΩ
Tolerance	5%
Voltage	300V
Power Rating	0.25W
Content	1
Diameter	2.3mm
Dimensions	(Ø x L) 2.3 mm x 6 mm
Length	6mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-50°C
Minimum Operating Temperature	-50°C
Product Type	Carbon film Resistor (set)
Temperature Coefficient	700ppm/°C
