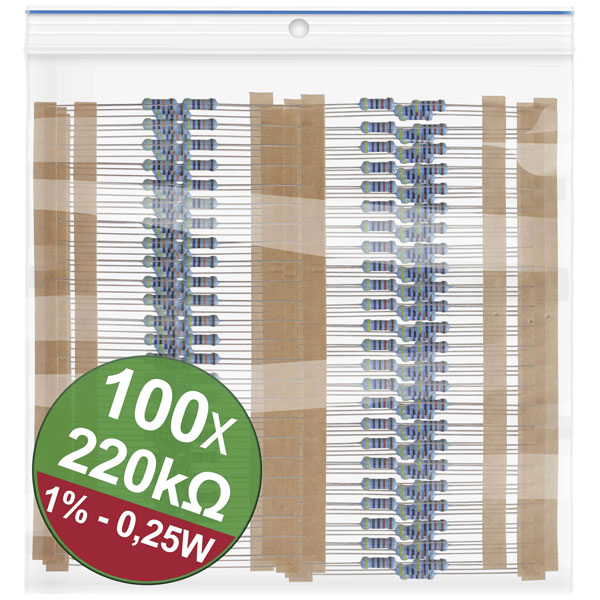

Quadrios 22P055 Metal film resistor set 220 kΩ Axial lead 0.25W 1% 1 Set

Quadrios 22P055 is a meticulously designed metal film resistor set that includes resistors with an impedance of 220 kO, accommodated by axial leads for versatile implementation in electronic circuits. Each resistor in the set is rated at 0.25 watts with a tolerance of 1%, ensuring precise and reliable performance in sensitive applications. This set of resistors is suitable for a broad range of engineering applications, including signal processing, analogue circuits, and instrumentation, where high stability and minimal noise are paramount. Being part of the Quadrios offering, these resistors deliver consistent results, making them an ideal choice for precision electronic projects and prototyping.

Type	Metal film Resistor (set)
Resistance	220kΩ
Tolerance	1%
Voltage	250V
Power Rating	0.25W
PPM	100ppm/°C
Content	1
Diameter	2.3mm
Dimensions	(Ø x L) 2.3 mm x 6 mm
Length	6mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
