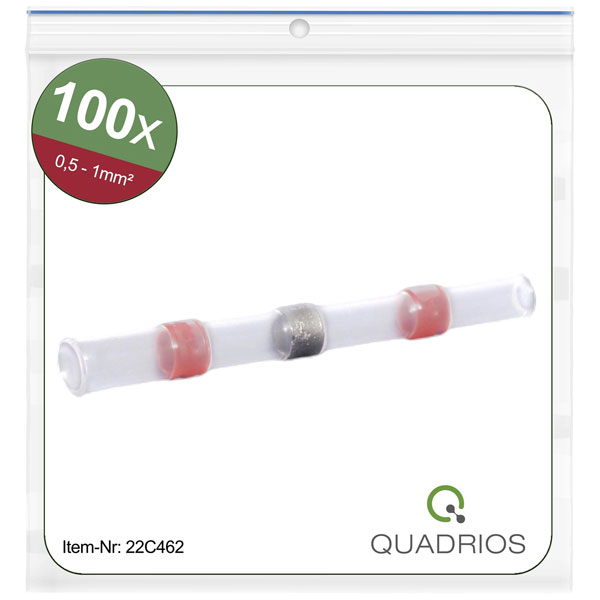

Quadrios 22C462 Butt Joint Heatshrink 0.5-1.0mm² Insulated Red Set

The Quadrios 22C462 is an insulated butt joint crimp connector designed for efficient wiring connections. It supports wire sizes of 0.5 mm² to 1.0 mm² and features heat shrink capabilities for enhanced durability and protection. Typically used in electrical installations, it ensures secure and reliable joins in automotive or household applications.

Type	Butt joint
Max Wire Size	0.5 - 1.0mm²
Insulation	Insulated
Colour	Red
Dimensions	(Ø x L) 2.7 mm x 40 mm
Pin Diameter	2.7mm
Pin Length	40mm
Shrinkage	2:1
Temperature Range	Melt-temperature solder: 160 °C Operating temperature range -55 - +125°C
Voltage	600V
