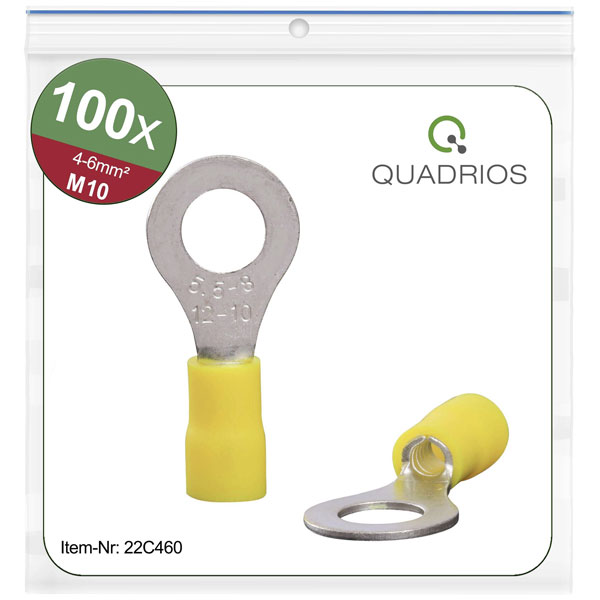

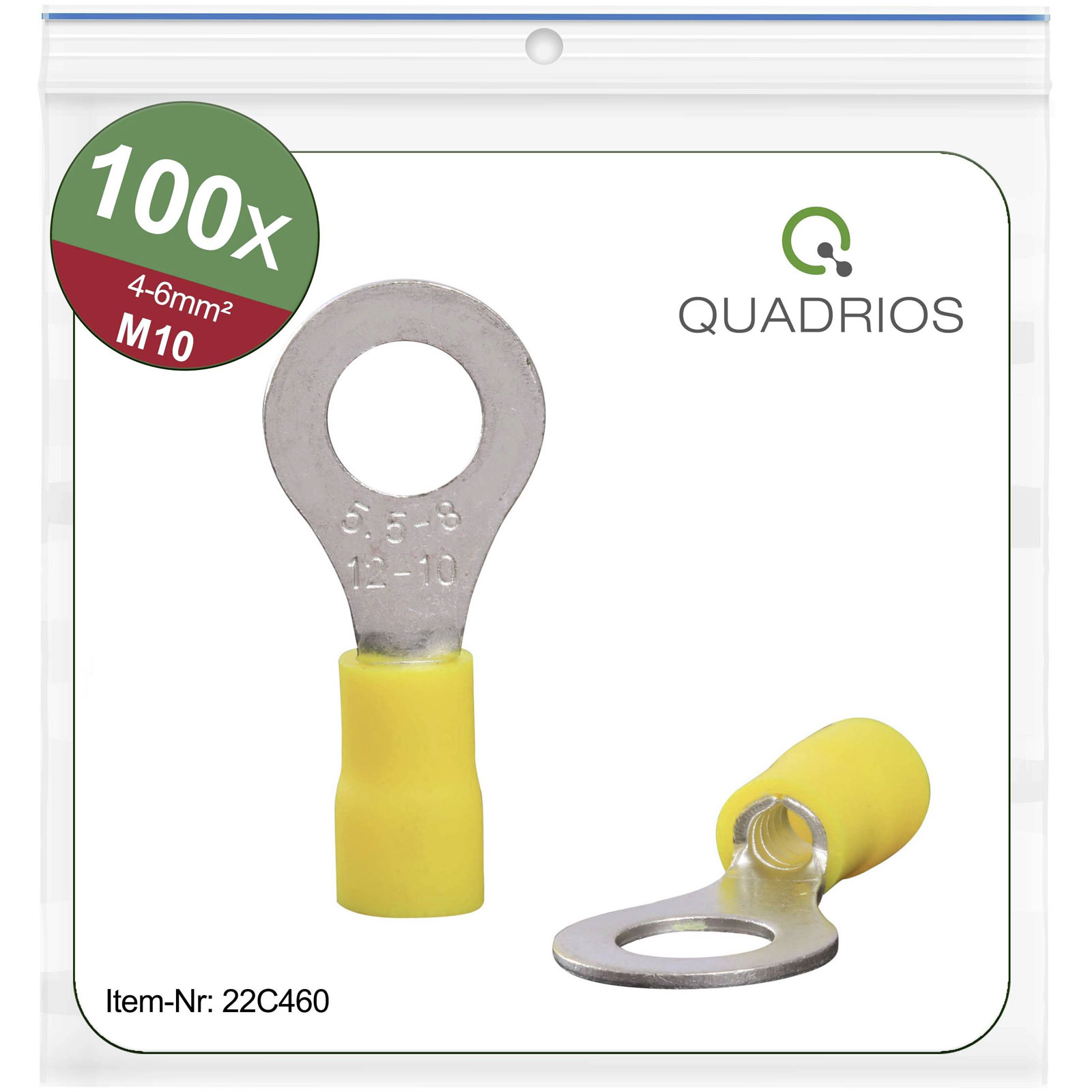

Quadrios 22C460 Ring Terminal 6.0mm² 10.5mm Hole Ø Partially Insulated

The Quadrios 22C460 Ring Terminal is a partially insulated, solder-free connector with a cross-section capacity of 6.0 mm² and a hole diameter of 10.5 mm, ideal for secure electrical connections. Its yellow insulation aids identification and protection, making it suitable for automotive and car crimp applications. This product is manufactured by Quadrios and is often used in environments requiring reliable crimp connections without the need for additional soldering.

Type	Ring terminal
Contact material	Copper silver plated
Cross-section range	4.0 - 6.0 mm²
Factory colour	Yellow
Hole Ø	10.5mm
Insulation material	PVC
Insulation type	Partially insulated
Manufacturer part #	22C460
max. cross section	6.0mm²
Min. cross section	4.0mm²
Misc Attribute	22C460
RoHS-compliant	Yes
Support sleeve	No
Thread Size	M10
Voltage (max.)	600V
