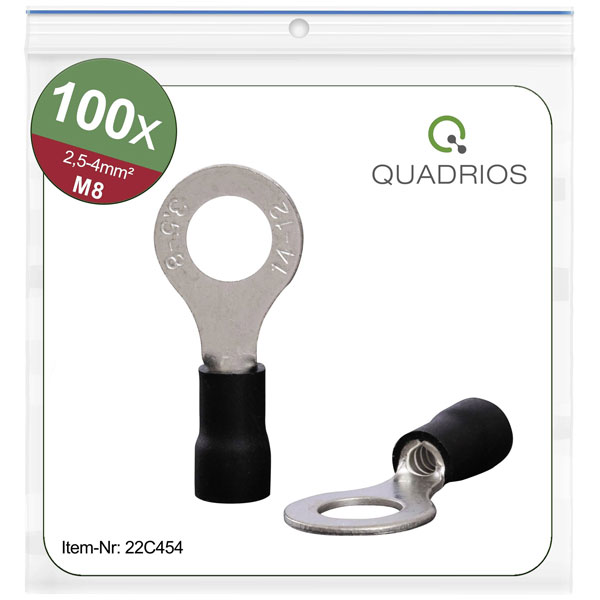

Quadrios 22C454 Ring Terminal 4.0 mm² Ø8.5mm Black Partially Insulated

The Quadrios 22C454 ring terminal is a partially insulated, black automotive crimp terminal. It features a cross-section capacity of 4.0 mm² and an 8.5 mm hole diameter, ideal for connecting wires securely without the need for soldering. This type of crimp connector is commonly used in automotive and general electrical applications.

Colour	Black
Insulated	Partially insulated
Stud Size	8.5mm
Maximum Wire Size (mm2)	4mm²
Contact Material	Copper silver plated
Cross-section range	2.5 - 4.0mm²
Hole Ø	8.5mm
max. cross section	4.0mm²
Maximimum Wire Gauge (AWG)	12
Min. cross section	2.5mm²
Product Type	Ring Terminal
Support sleeve	No
Thread Size	M8
Voltage (max.)	600V
