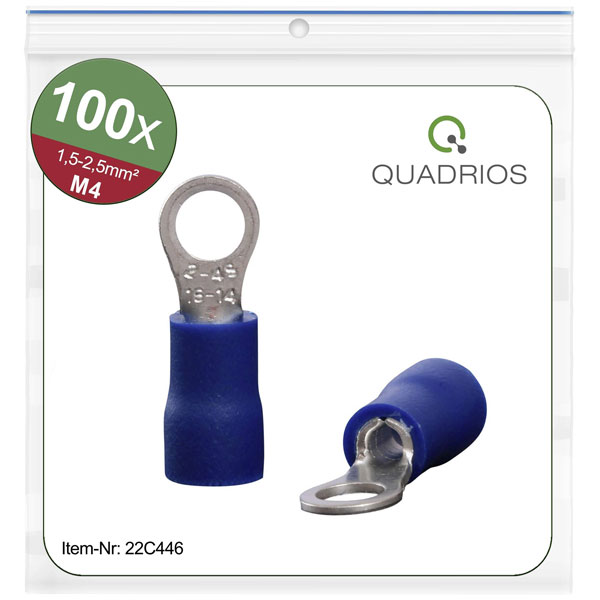

Quadrios 22C446 Ring Terminal Blue 2.5mm² Dia. 4.3mm 1 Set

The Quadrios 22C446 ring terminal set features a cross-section of 2.5 mm² and a hole diameter of 4.3 mm, with partial insulation in blue. These solder-free connectors are commonly used in automotive and car crimp terminal applications. Ideal for electrical systems, they ensure secure connections without soldering.

Colour	Blue
Insulated	Partially insulated
Stud Size	4.3mm
Maximum Wire Size (mm2)	2.50mm²
Contact Material	Copper silver plated
Cross-section range	1.5 - 2.5mm²
Hole Ø	4.3mm
max. cross section	2.5mm²
Maximimum Wire Gauge (AWG)	14
Min. cross section	1.5mm²
Product Type	Ring Terminal
Support sleeve	No
Thread Size	M4
Voltage (max.)	600V
